2019

ADDITIONAL VEHICLE FEATURES:

  • Selectable 2WD/4WD/dual-mode rear differential with diff. lock
  • Continuously Variable Transmission (CVT) with (H,L,N,R)
  • 12-inch wheels with 26-inch Duro tires
  • 2 LED headlights
  • Premium Realtree Xtra® Green Camo bodywork

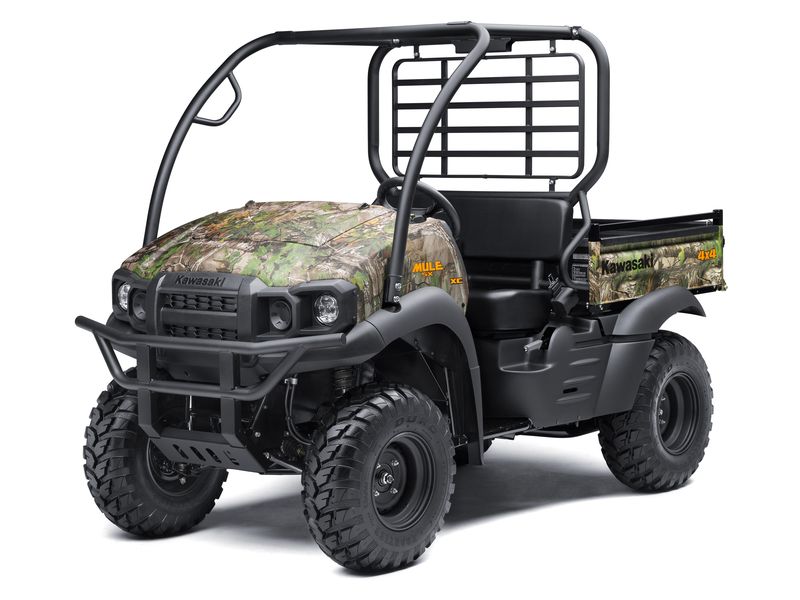

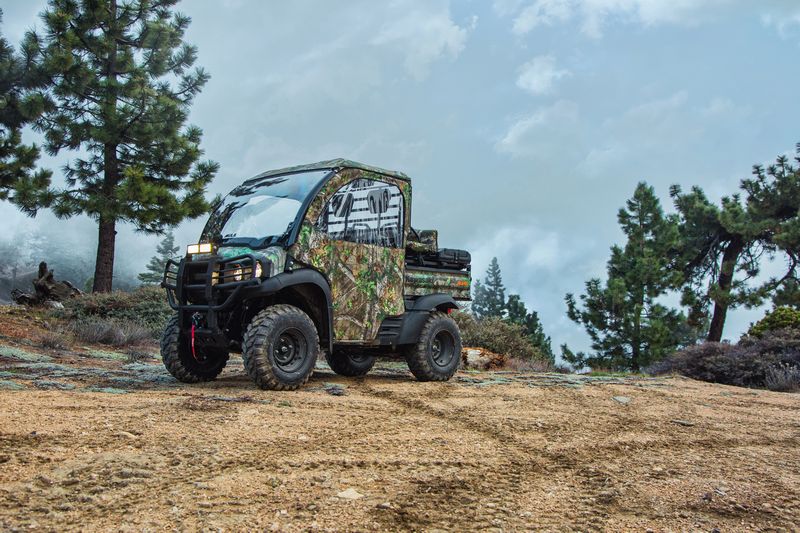

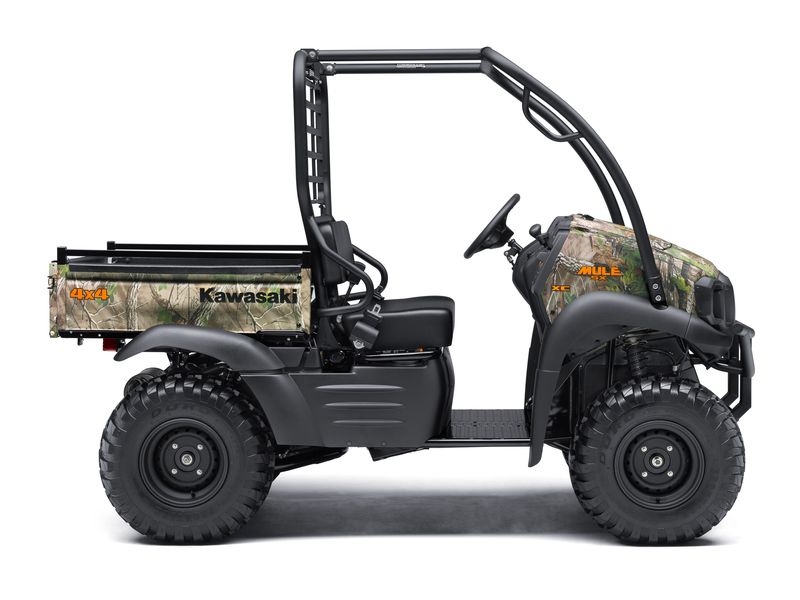

MULE SX 4x4 XC CAMO
colors

REALTREE XTRA® GREEN CAMO

Power
Engine
4-stroke, single-cylinder, OHV, air-cooled
Displacement
401
Bore x Stroke
3.23x2.99 in
Compression Ratio
8.6:1
Transmission
Continuously Variable Transmission (CVT) with (H,L,N,R)
Final Drive
Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock
Performance
Front Suspension / Wheel Travel
MacPherson Strut/3.1 in
Rear Suspension / Wheel Travel
Unit Swingarm/79 mm
Front Tire
26x9.00-12
Rear Tire
26x9.00-12
Front Brakes
Drum
Rear Brakes
Drum
Steering
Rack-and-pinion, Tilt steering
Turning Radius
3597 mm
Details
Overall Length
2710
Overall Width
1336
Overall Height
1864
Ground Clearance
206 mm
Curb Weight
498 kg
Fuel Capacity
19 liters
Wheelbase
1781 mm
Color Choices
Realtree Xtra® Green Camo
Seating Capacity
2

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
