2020

ADDITIONAL VEHICLE FEATURES:

  • On-the-Fly Electrically Selectable 4WD and Front Differential Lock
  • Large Volume Continuously Variable Transmission (CVT) with Centrifugal Clutch and High-Quality Belt
  • Downhill Engine Braking

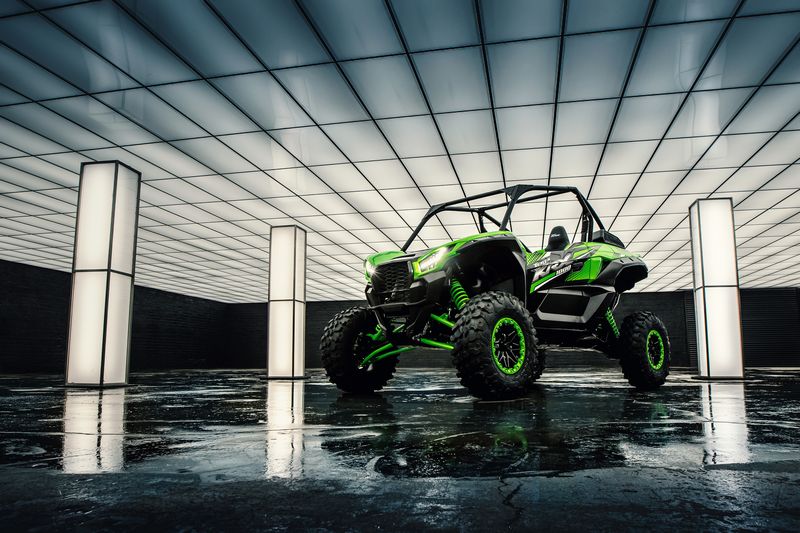

TERYX KRX 1000
colors

LIME GREEN / METALLIC ONYX BLACK

Power
Engine
4-stroke, DOHC, 4-valve parallel-twin, liquid-cooled
Displacement
999
Bore x Stroke
92.0 x 75.1 mm
Compression Ratio
11.5:1
Fuel System
DFI with two 50mm throttle bodies
Ignition
TCBI with electronic advance
Transmission
Automatic CVT with centrifugal clutch (H,L,N,R)
Final Drive
Selectable 2WD/4WD with locking front differential, shaft
Performance
Front Suspension / Wheel Travel
Double wishbone, FOX 2.5 PODIUM LSC shocks with piggyback reservoir, fully adjustable preload, and 24-position adjustable compression damping/18.6 in.
Rear Suspension / Wheel Travel
4-link trailing-arm rear suspension, FOX 2.5 PODIUM LSC shocks with piggyback reservoir, fully adjustable preload, and 24-position adjustable compression damping/21.1 in.
Front Tire
MAXXIS Carnivore 31 x 10.00R15 8PR
Rear Tire
MAXXIS Carnivore 31 x 10.00R15 8PR
Front Brakes
Dual hydraulic discs with two-piston calipers
Rear Brakes
Dual hydraulic discs with single-piston calipers
Steering
Electric Power Steering (EPS) / rack-and-pinion
Turning Radius
3231 mm
Details
Frame Type
Ladder type, tubular steel
Overall Length
3305
Overall Width
1730
Overall Height
1905
Curb Weight
860 kg
Fuel Capacity
40 liters
Wheelbase
2510 mm
Color Choices
Lime Green/ Metallic Onyx Black, Metallic Moondust White/ Metallic Onyx Black
Seating Capacity
2

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
