2020

ADDITIONAL VEHICLE FEATURES:

  • Selectable 2WD/4WD/dual-mode rear differential with diff. lock
  • Continuously Variable Transmission (CVT) with (H,L,N,R)
  • Steel front bumper and steel cargo bed
  • Electric Power Steering (EPS)

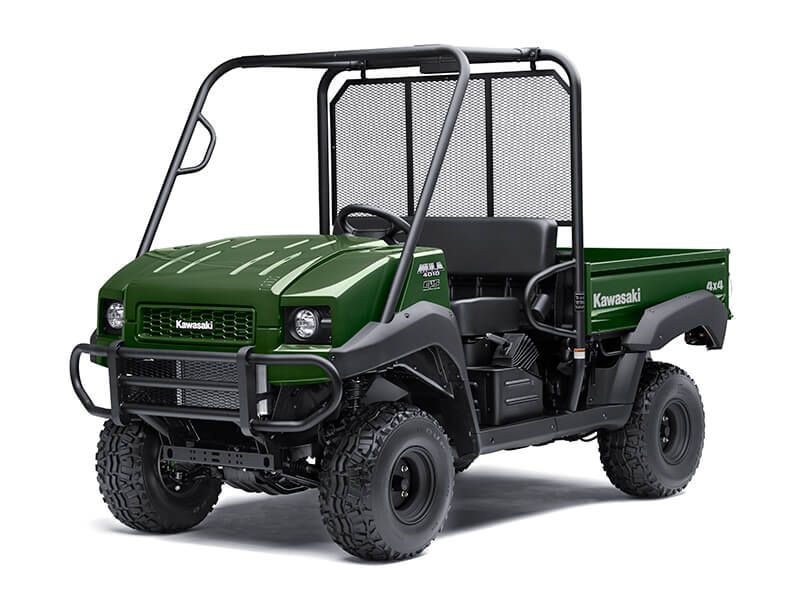

MULE 4010 4x4
MULE 4010 4x4
colors

DARK ROYAL RED

TIMBERLINE GREEN

Power
Engine
4-stroke, 2-cylinder, OHV, 90° V Liquid-cooled, gas
Displacement
617
Bore x Stroke
2.99x2.68 in
Compression Ratio
10:3:1
Fuel System
DFI® with 34mm Mikuni throttle body
Transmission
Continuously Variable Transmission (CVT) with (H,L,N,R)
Final Drive
Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock
Performance
Front Suspension / Wheel Travel
MacPherson Strut/3.9 in
Rear Suspension / Wheel Travel
DeDion Axle/2.8 in
Front Tire
23x11.00-10
Rear Tire
23x11.00-10
Front Brakes
Drum
Rear Brakes
Drum
Steering
Electric Power Steering (EPS)
Details
Overall Length
2964
Overall Width
1575
Overall Height
1925
Ground Clearance
175 mm
Curb Weight
650 kg
Fuel Capacity
24 liters
Wheelbase
1869 mm
Color Choices
Timberline Green, Dark Royal Red
Seating Capacity
2

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
