2019

ADDITIONAL VEHICLE FEATURES:

  • Selectable 2WD/4WD/dual-mode rear differential with diff. lock
  • Continuously Variable Transmission (CVT) with (H,L,N,R)
  • 24-inch Duro tires
  • Halogen headlights
  • Towing hitch drawbar and dash-mounted horn

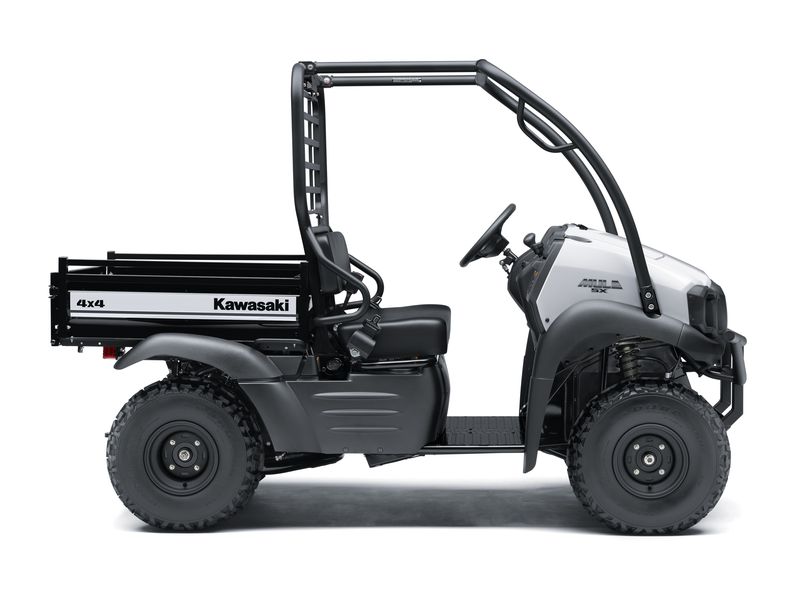

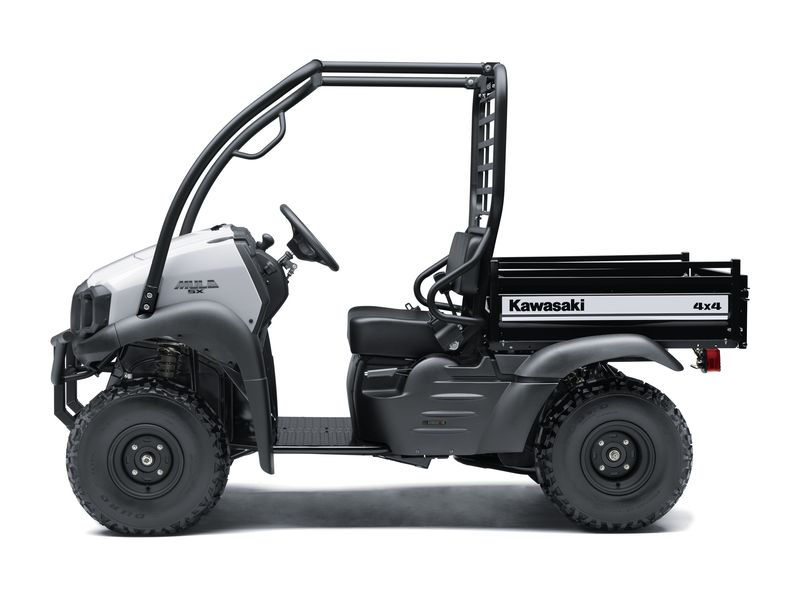

MULE SX 4x4 SE
Power
Engine
4-stroke, single-cylinder, OHV, air-cooled
Displacement
401
Bore x Stroke
3.23x2.99 in
Compression Ratio
8.6:1
Transmission
Continuously Variable Transmission (CVT) with (H,L,N,R)
Final Drive
Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock
Performance
Front Suspension / Wheel Travel
MacPherson Strut/3.1 in
Rear Suspension / Wheel Travel
Unit Swingarm/79 mm
Front Tire
24x9.00-10
Rear Tire
24x11.00-10
Front Brakes
Drum
Rear Brakes
Drum
Steering
Rack-and-pinion, Tilt steering
Turning Radius
3292 mm
Details
Overall Length
2710
Overall Width
1336
Overall Height
1800
Ground Clearance
170 mm
Curb Weight
472 kg
Fuel Capacity
19 liters
Wheelbase
1781 mm
Color Choices
Bright White
Seating Capacity
2

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
