2021

ADDITIONAL VEHICLE FEATURES:

  • Street legal hypersport performance
  • Supercharged In-Line 4
  • KYB AOS-II front fork and Öhlins TTX36 rear shock
  • Kawasaki Quick Shifter (KQS)
  • Kawasaki TRaction Control (KTRC–9 modes)
  • Smartphone connectivity
  • All LED lighting

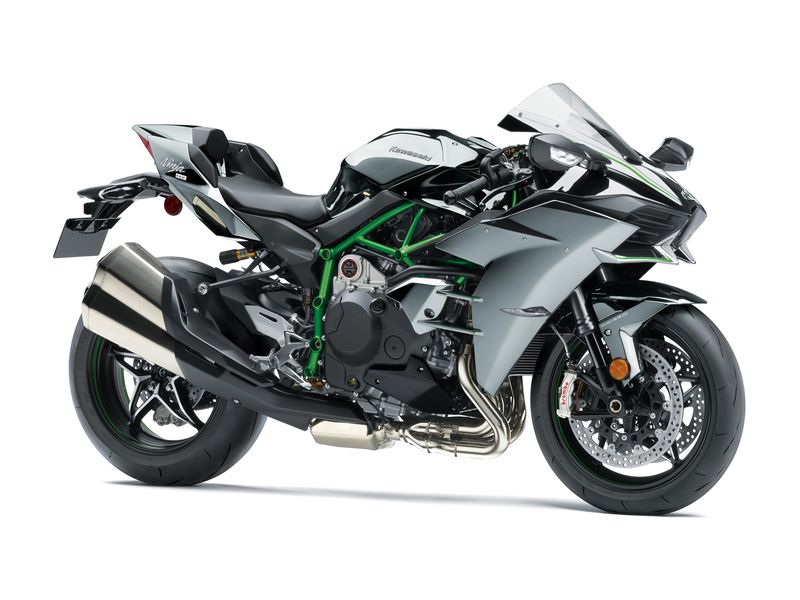

NINJA H2
colors

MIRROR COATED SPARK BLACK

Power
Engine
Liquid-cooled, 4-stroke In-Line Four with Supercharger
Displacement
998 cm³
Bore x Stroke
76.0 x 55.0 mm
Compression Ratio
8.5:1
Fuel System
Fuel injection: Ø 50 mm x 4 with dual injection
Ignition
Digital
Transmission
6-speed, return, dog-ring
Final Drive
Sealed chain
Starting System
Electric
Performance
Electronic Rider Aids
ABS (Anti-lock Brake System), K-ACT (Kawasaki Advanced Coactive-braking Technology), KQS (Kawasaki Quick Shifter), KLCM (Kawasaki Launch Control Mode), KCMF (Kawasaki Cornering Management Function), KEBC (Kawasaki Engine Brake Control), IMU (Inertial Measurement Unit), 9-Mode KTRC (Kawasaki Traction Control), The Economical Riding Indicator, Smartphone connectivity
Front Suspension / Wheel Travel
43 mm inverted fork with rebound and compression damping, spring preload adjustability and top-out springs / 120 mm
Rear Suspension / Wheel Travel
Uni-Trak, Öhlins TTX36 gas-charged shock with piggyback reservoir, compression damping, rebound damping, preload adjustability and top-out spring / 135 mm
Front Tire
120/70ZR17M/C (58W)
Rear Tire
200/55ZR17M/C (78W)
Front Brakes
Dual semi-floating 330 mm Brembo discs. Caliper: Dual radial-mount, Brembo Stylema monobloc, opposed 4-piston
Rear Brakes
Single 250 mm disc. Caliper: Brembo, opposed 2-piston
Lubrication
Forced lubrication, wet sump with oil cooler
Steering
27° / 27°
Details
Frame Type
Trellis, high-tensile steel with Swingarm Mounting Plate
Rake/Trail
103 mm
Overall Length
2,085 mm
Overall Width
770 mm
Overall Height
1,125 mm
Ground Clearance
130 mm
Seat Height
825 mm
Curb Weight
238 kg
Fuel Capacity
17 litres
Wheelbase
1,455 mm
Color Choices
Mirror Coated Spark Black

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
