2020

ADDITIONAL VEHICLE FEATURES:

  • Electronic cruise control
  • Kawasaki Corner Management Function (KCMF)
  • High-tech instrumentation
  • Kawasaki Quick Shifter (KQS)
  • Full color LCD display
  • Kawasaki Launch Control Mode (KLCM)
  • Kawasaki Electronic Control Suspension (KECS)
  • Integrated Riding Modes

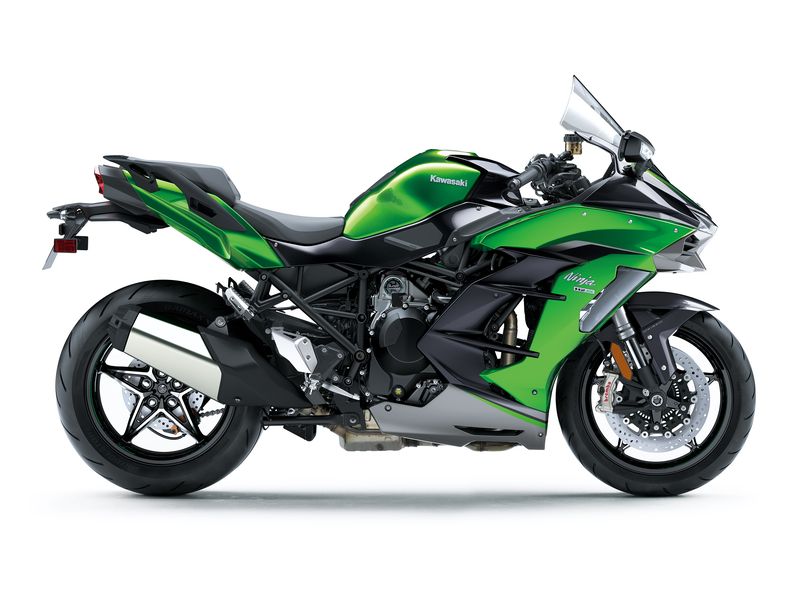

NINJA H2 SX SE+
colors

EMERALD BLAZED GREEN/METALLIC DIABLO BLACK

Power
Engine
4-stroke, 4-cylinder, DOHC, 4-valve, liquid-cooled, supercharged
Displacement
998
Bore x Stroke
76.0 x 55.0mm
Compression Ratio
11.2:1
Fuel System
DFI® with 40mm throttle bodies (4) with dual injection
Ignition
Digital
Transmission
6-speed, return, dog-ring
Final Drive
Sealed chain
Performance
Electronic Rider Aids
Kawasaki Electronic Control Suspension (KECS), Kawasaki Cornering Management Function (KCMF), Kawasaki Traction Control (KTRC), Kawasaki Launch Control Mode (KLCM), Kawasaki Intelligent anti-lock Brake System (KIBS), Kawasaki Engine Brake Control, Kawasaki Quick Shifter (KQS) (dual direction), Electronic Cruise Control, LED Cornering Lights
Front Suspension / Wheel Travel
43mm inverted fork with KECS-controlled rebound and compression damping, manual spring preload adjustability and top-out springs/4.7 in
Rear Suspension / Wheel Travel
New Uni-Trak®, BFRC gas charged shock with piggyback reservoir, KECS-controlled compression and rebound damping electronically-adjustable spring preload/5.5 in
Front Tire
120/70 ZR17 (58W)
Rear Tire
190/55 ZR17 (75W)
Front Brakes
Dual radial-mount, opposed 4-piston Brembo Stylema® calipers, dual semi-floating 330mm discs, KIBS ABS
Rear Brakes
Opposed 2-piston calipers, single 250mm disc, KIBS ABS
Details
Frame Type
Trellis, high-tensile steel, with swingarm mounting plate
Rake/Trail
24.7/4.1 in
Overall Length
2136
Overall Width
775
Overall Height
1260
Ground Clearance
130 mm
Seat Height
836
Curb Weight
262 kg
Fuel Capacity
19 liters
Wheelbase
1481 mm
Color Choices
Emerald Blazed Green/Metallic Diablo Black/Metallic Graphite Gray

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
