2020

ADDITIONAL VEHICLE FEATURES:

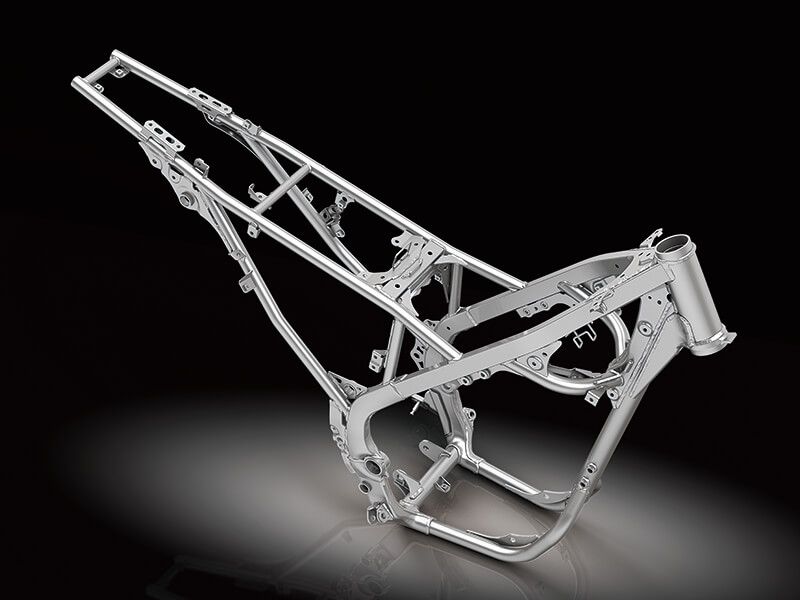

  • Compact perimeter frame
  • Hassle-free electric start
  • Full-size wheels
  • KX™-inspired styling and ergonomics

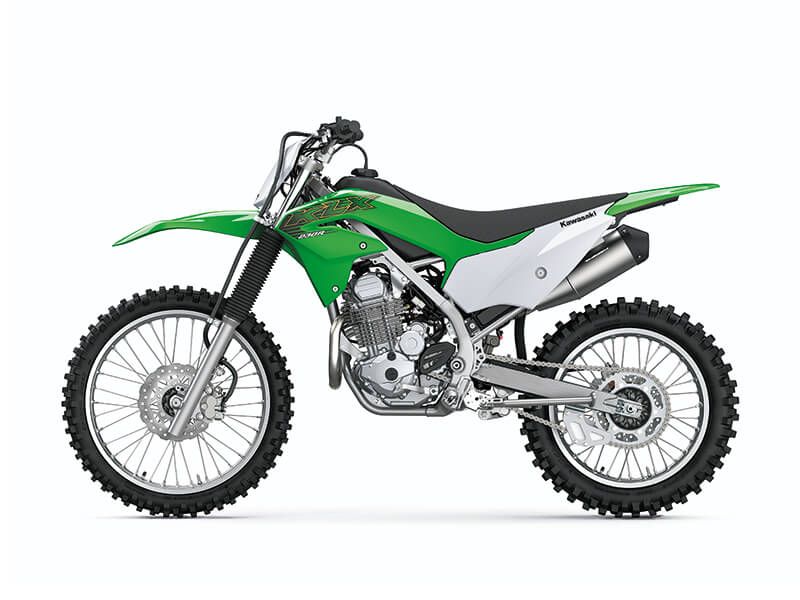

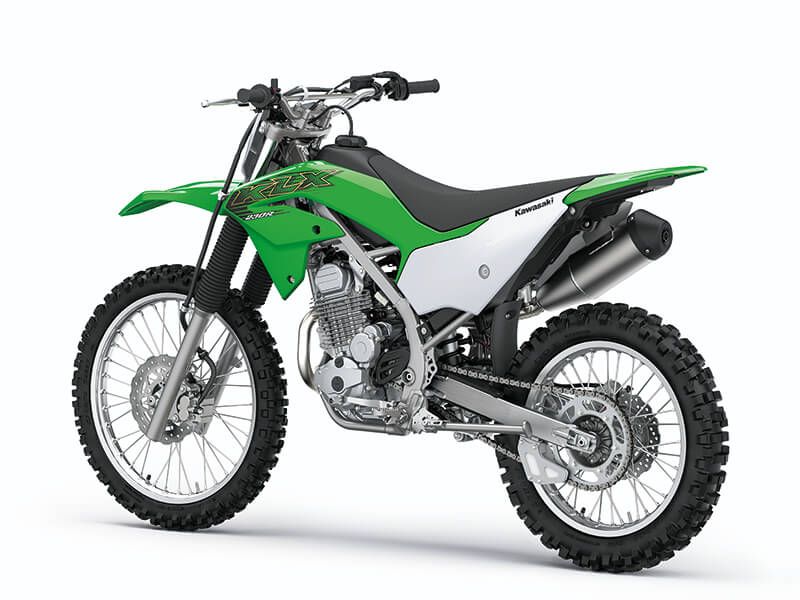

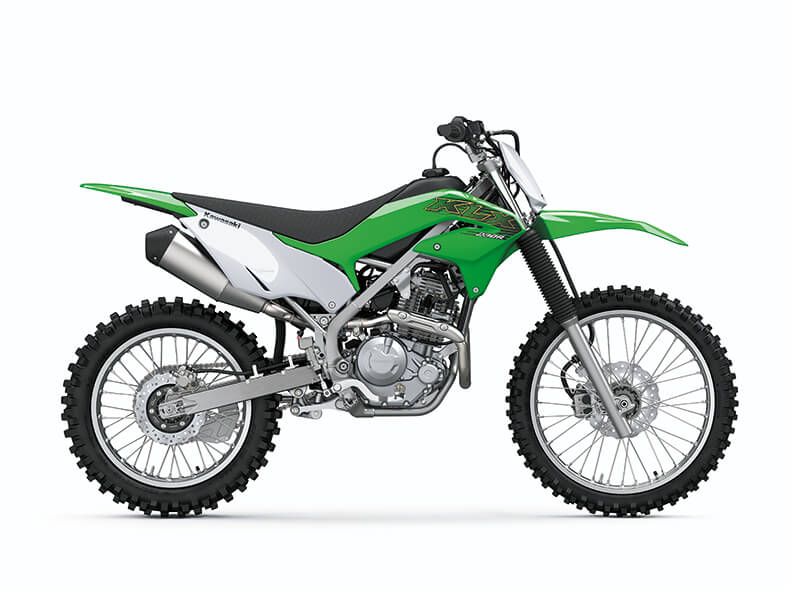

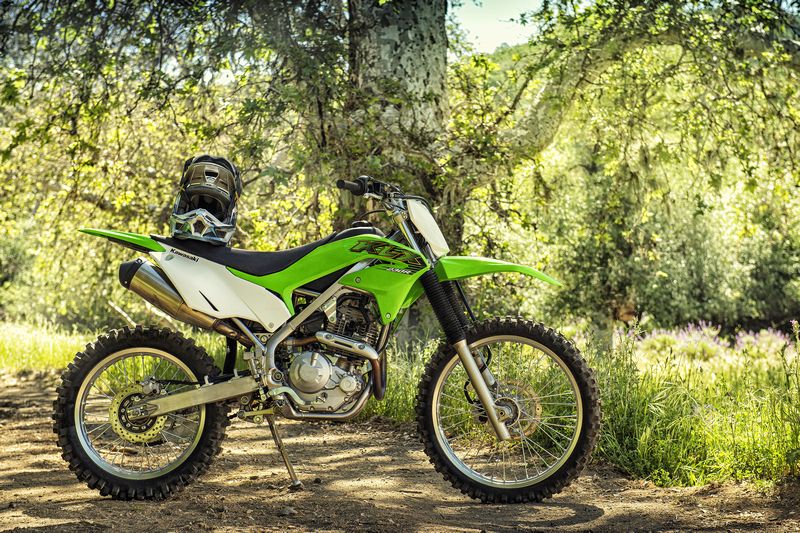

KLX230R
Power

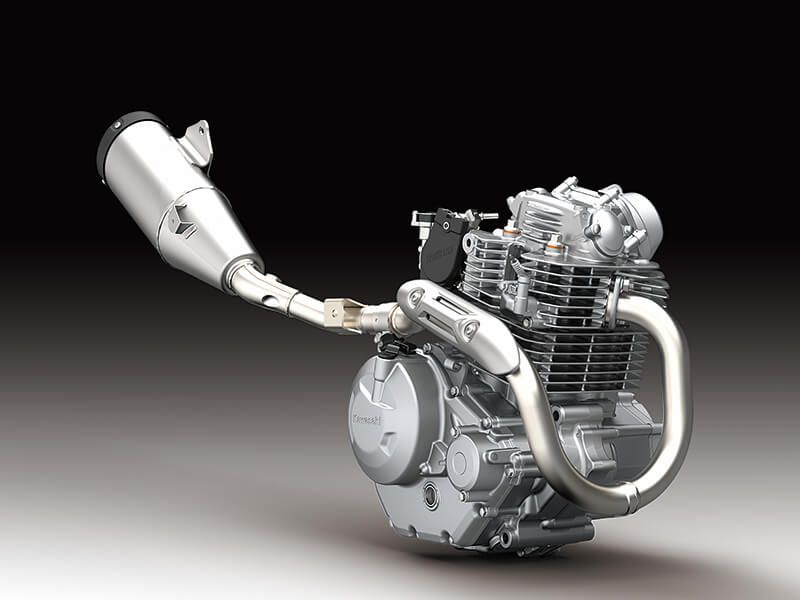

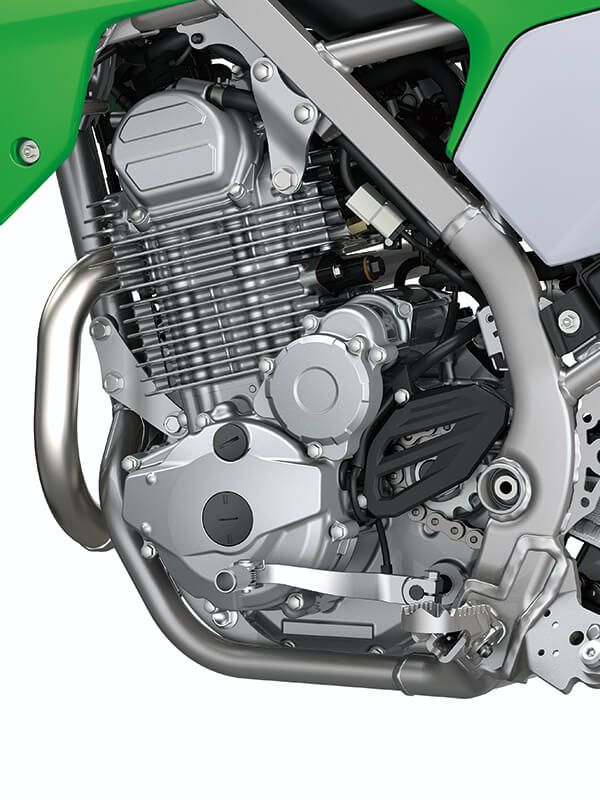

Engine
4-stroke single, SOHC, air-cooled
Displacement
233
Bore x Stroke
67.0 x 66.0mm
Compression Ratio
9.4:1
Fuel System
DFI® with 32mm Keihin throttle body
Ignition
TCBI Electronic Advance
Transmission
6-speed, return shift with wet multi-disc manual clutch
Final Drive
Chain
Performance

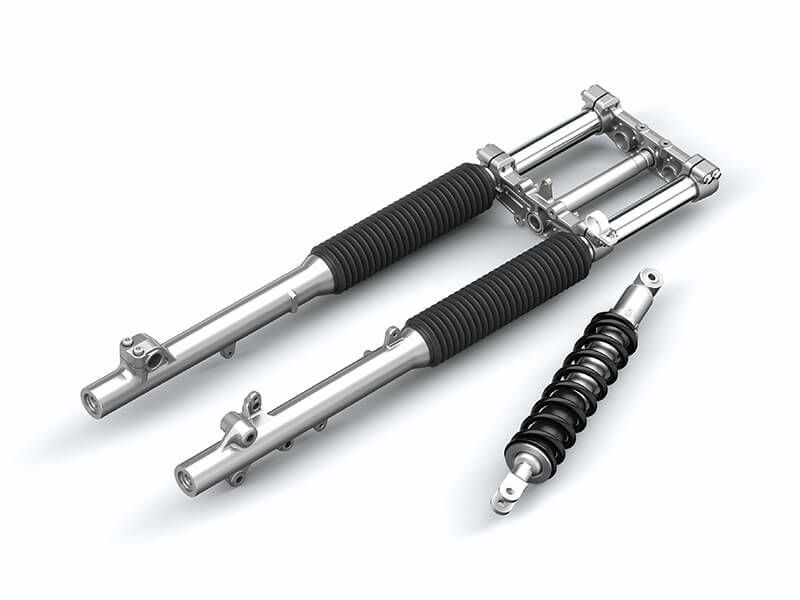

Front Suspension / Wheel Travel
37mm telescopic fork/9.8 in

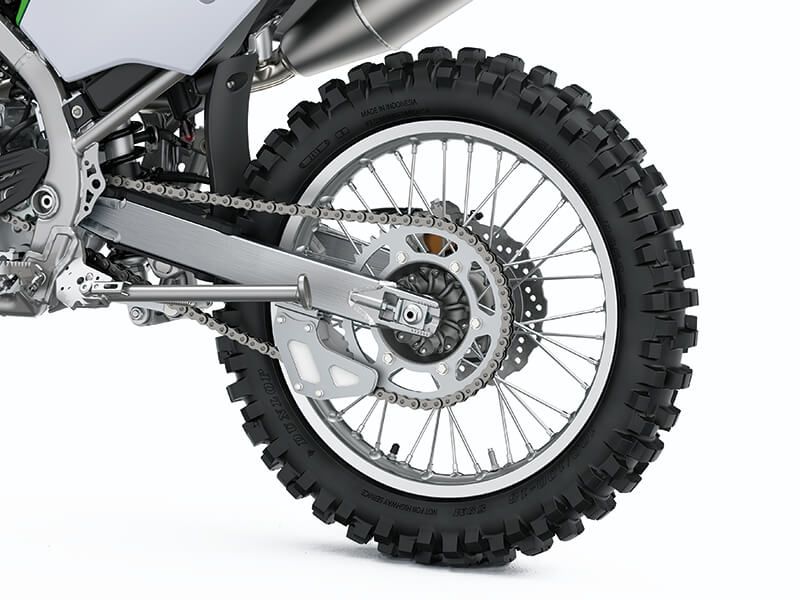

Rear Suspension / Wheel Travel
Uni-Trak® linkage system and single shock with adjustable spring preload/9.9 in
Front Tire
80/100-21
Rear Tire
100/100-18
Front Brakes
Single 240mm petal disc with a dual-piston caliper
Rear Brakes
Single 220mm petal disc with single-piston caliper
Details

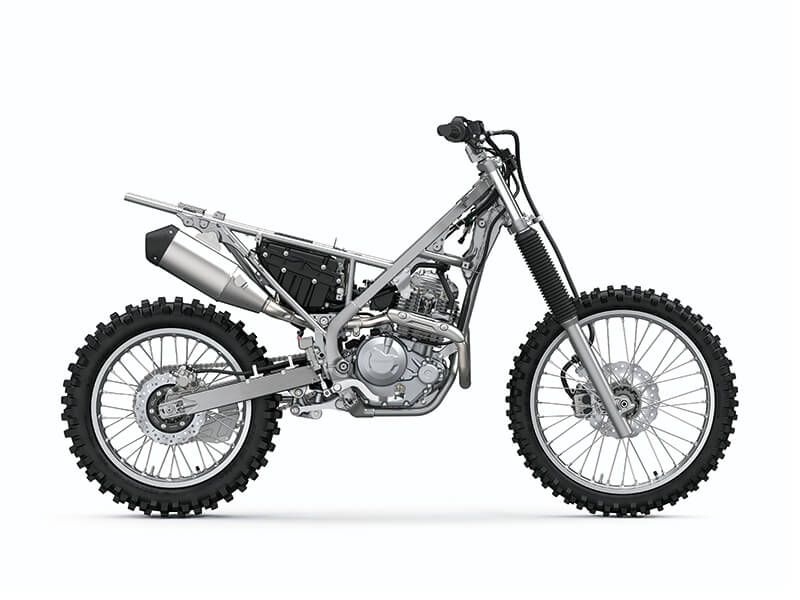

Frame Type
High-tensile steel perimeter
Rake/Trail
26.5°/4.4 in
Seat Height
919

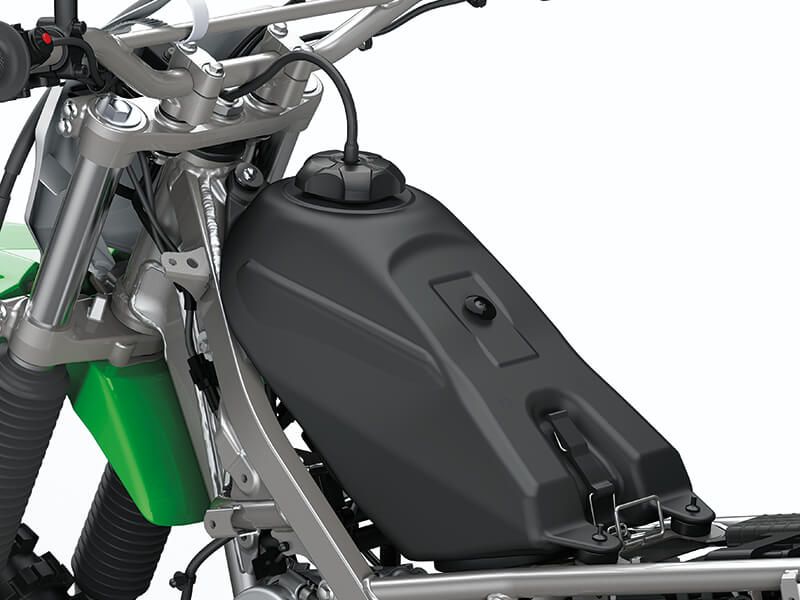

Fuel Capacity
6 liters
Wheelbase
1359 mm
Color Choices
Lime Green

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
