2020

ADDITIONAL VEHICLE FEATURES:

  • Low 26.8-inch seat height
  • Sporty styling
  • Four-speed transmission with automatic clutch

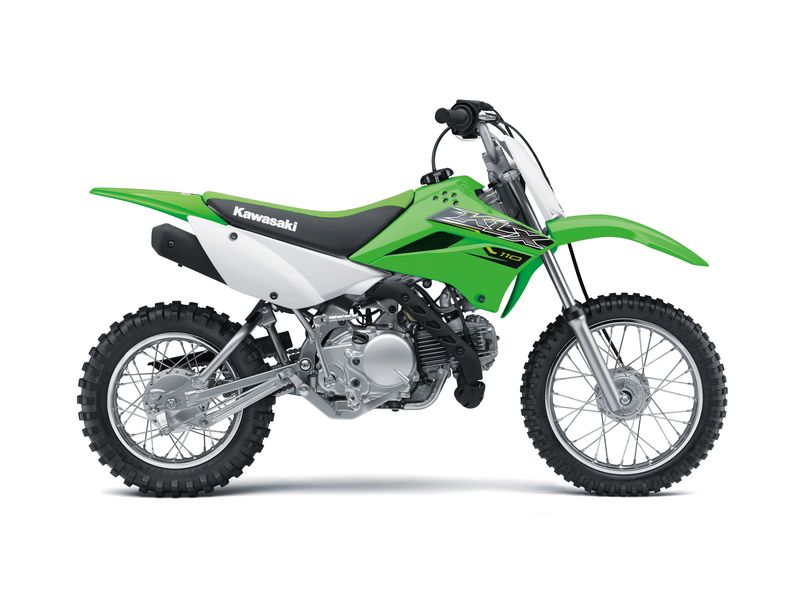

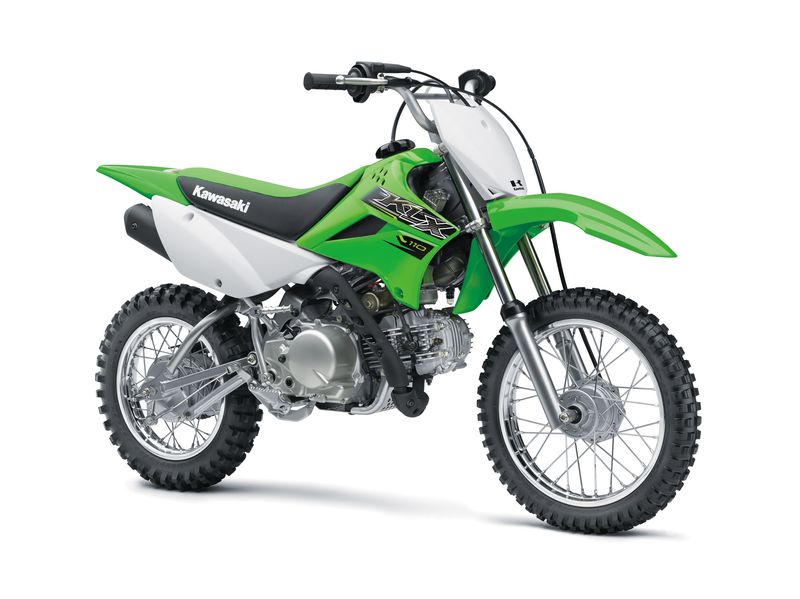

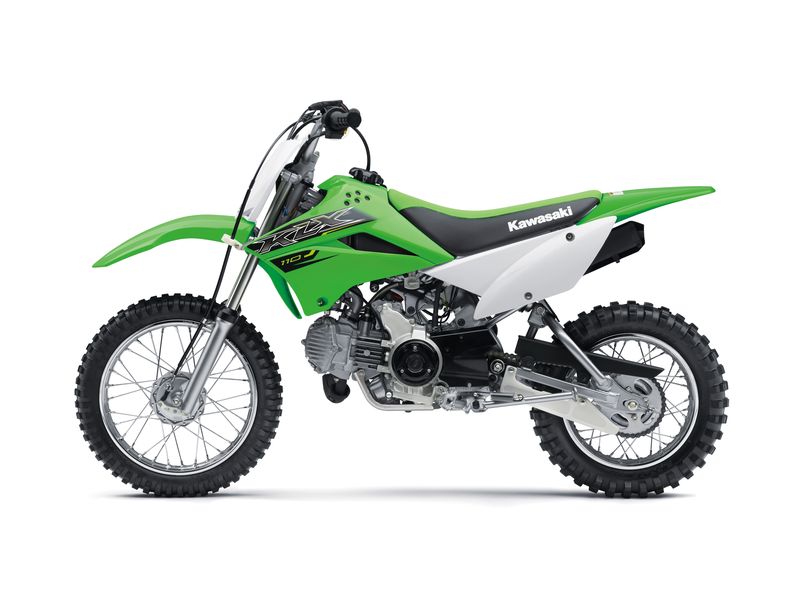

KLX110
Power
Engine
4-stroke, 1-cylinder, SOHC, air-cooled
Displacement
112
Bore x Stroke
53.0 x 50.6mm
Compression Ratio
9.5:1
Fuel System
Keihin PB18
Ignition
DC-CDI
Transmission
4-speed, return shift, centrifugal clutch
Final Drive
Chain
Performance
Front Suspension / Wheel Travel
30mm hydraulic telescopic fork/109 mm
Rear Suspension / Wheel Travel
Rear Suspension / Wheel TravelSwingarm with single hydraulic shock/109 mm
Front Tire
2.50x14
Rear Tire
3.00x12
Front Brakes
Mechanical Drum
Rear Brakes
Mechanical Drum
Details
Frame Type
Backbone frame, high-tensile steel
Rake/Trail
24.8°/51 mm
Fuel Capacity
5 liters
Wheelbase
1074 mm
Color Choices
Lime Green

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
