2020

ADDITIONAL VEHICLE FEATURES:

  • Taller seat height (28.7-inch) and higher ground clearance (10.4-inch)
  • Sporty styling
  • Four-speed transmission with manual clutch

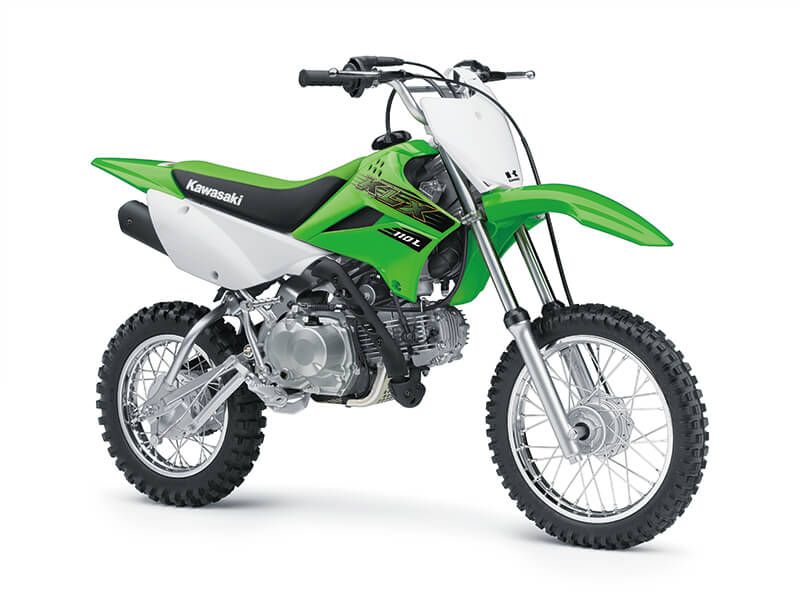

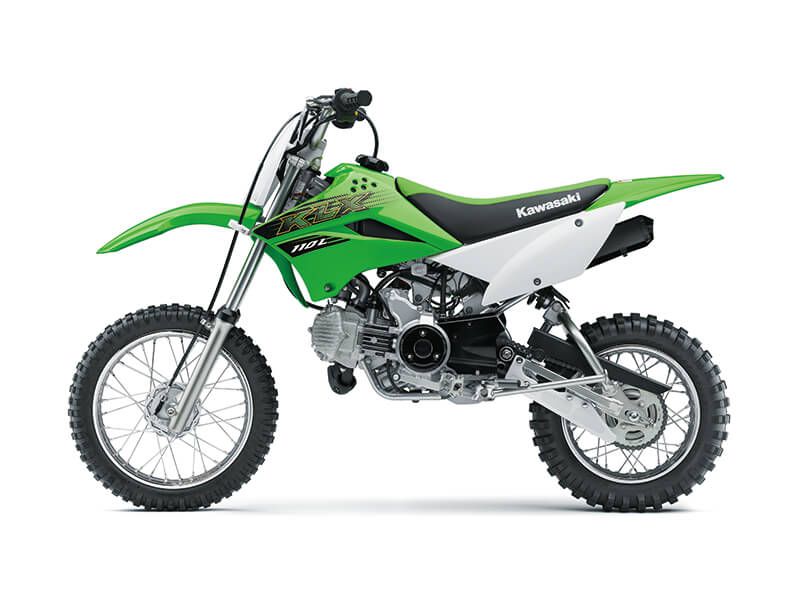

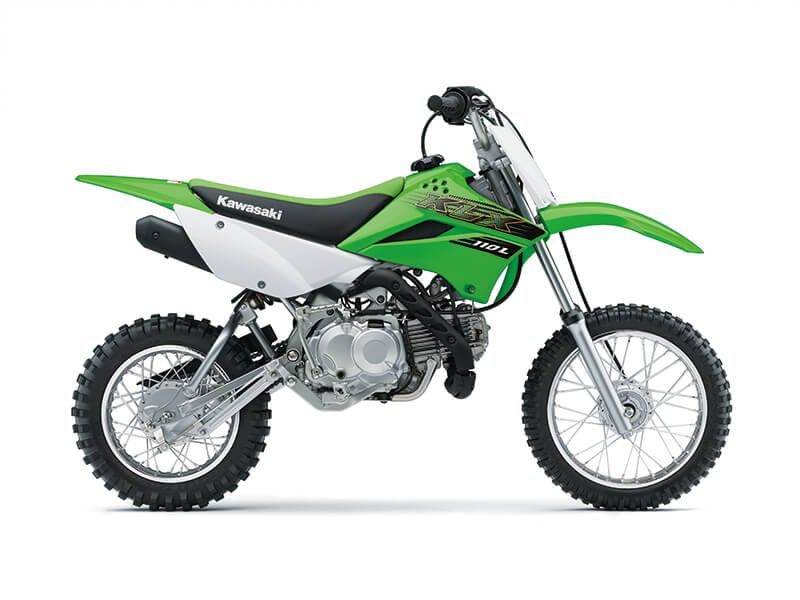

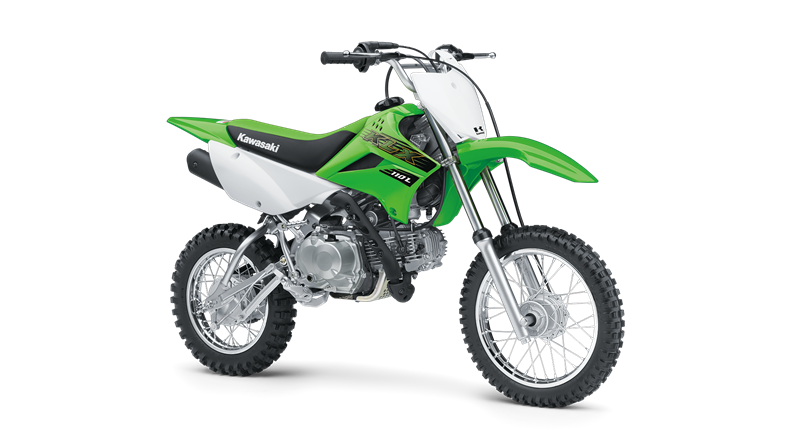

KLX110L
Power
Engine
4-stroke single, SOHC, air-cooled
Displacement
112
Bore x Stroke
53.0 x 50.6mm
Compression Ratio
9.5:1
Fuel System
18mm Keihin carburetor and screw type throttle limiter on grip housing
Ignition
DC-CDI
Transmission
4-speed, return shift, wet multi-disc manual clutch
Final Drive
Chain
Performance
Front Suspension / Wheel Travel
30mm hydraulic telescopic fork/5.5 in
Rear Suspension / Wheel Travel
Swingarm with single hydraulic shock/5.2 in
Front Tire
2.50x14
Rear Tire
3.00x12
Front Brakes
90mm mechanical drum, cable actuated
Rear Brakes
110mm mechanical drum, rod actuated
Details
Frame Type
Backbone frame, high-tensile steel
Rake/Trail
24.2°/1.9 in
Seat Height
729
Fuel Capacity
4 liters
Wheelbase
1074 mm
Color Choices
Lime Green

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
