2020

ADDITIONAL VEHICLE FEATURES:

  • Kawasaki Intelligent anti-lock Brake System (KIBS)
  • Selectable power modes combined with Kawasaki TRaction Control (KTRC)
  • Class-leading SHOWA suspension
  • SHOWA SFF-BP fork
  • Assist & Slipper Clutch
  • Optimized ergonomics with 5-position adjustable clutch lever
  • Multi-function LCD screen
  • Pressed-aluminum perimeter frame
  • Exclusive Kawasaki Racing Team colors & graphics

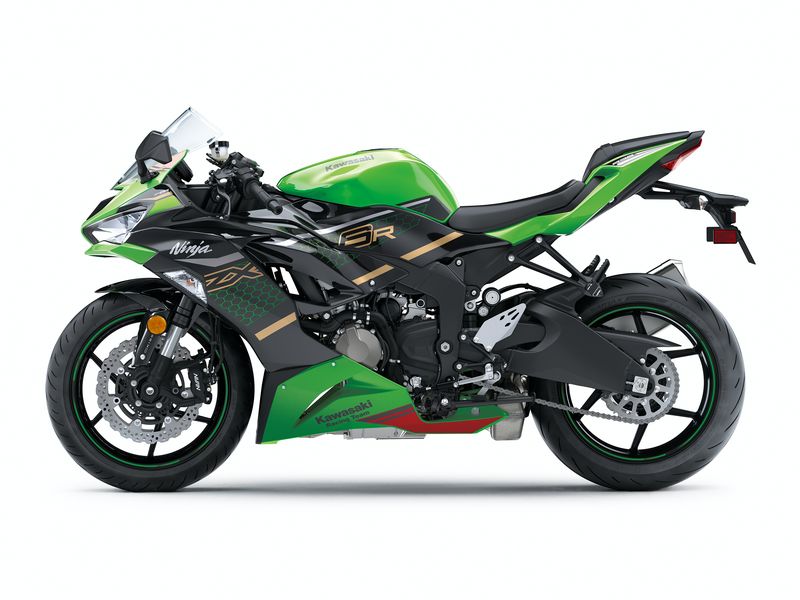

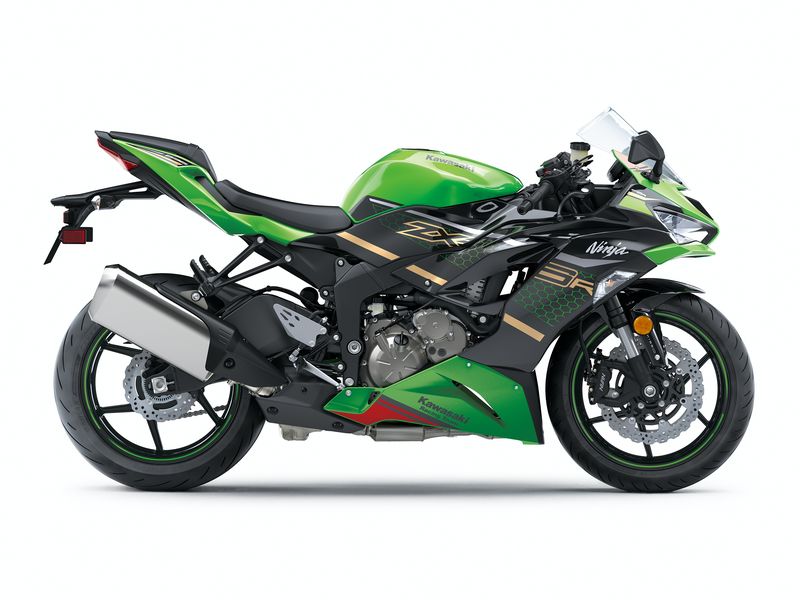

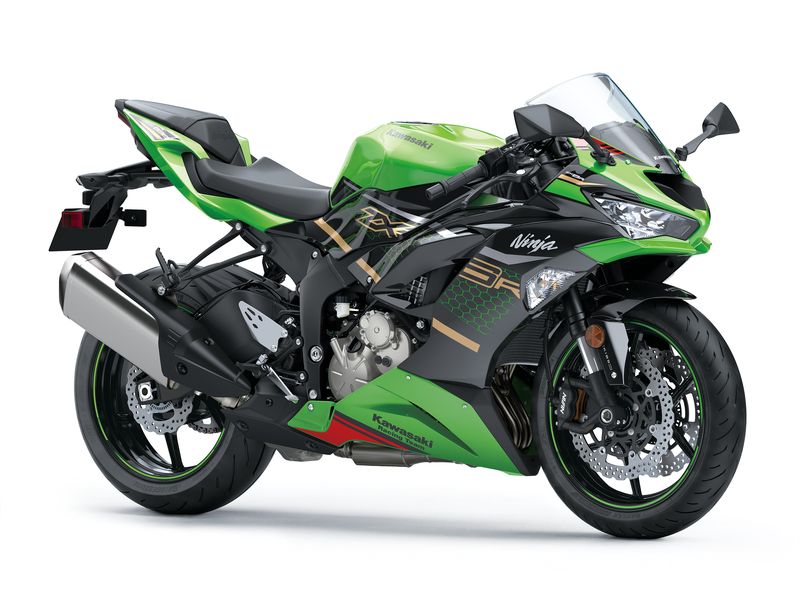

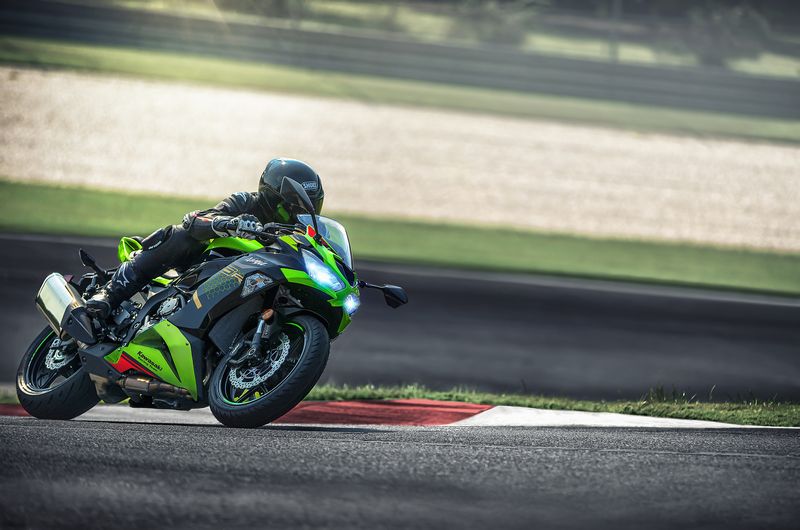

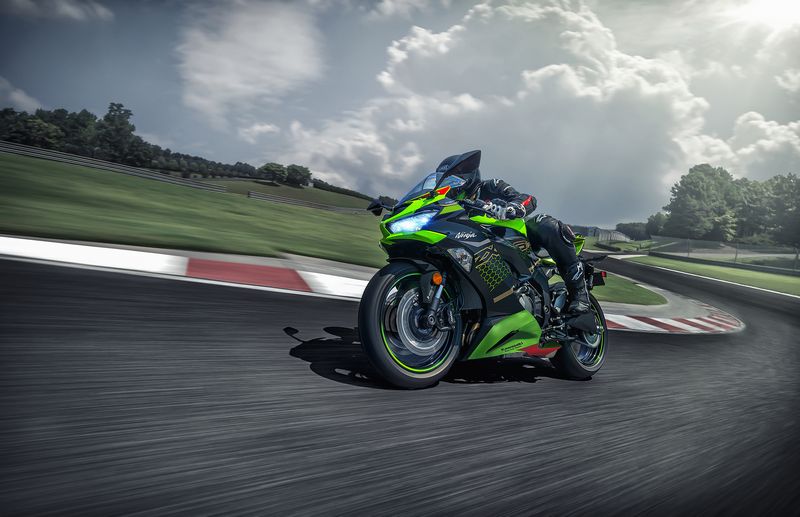

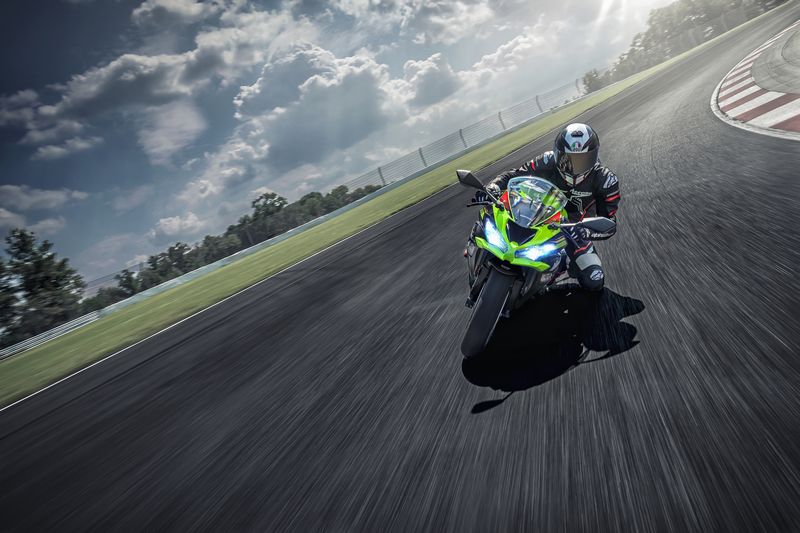

NINJA ZX-6R ABS KRT
Power
Engine
4-stroke, 4-cylinder, DOHC, 16-valve, liquid-cooled
Displacement
636cc
Bore x Stroke
67.0 x 45.1 mm
Compression Ratio
12.9:1
Fuel System
DFI® with 38mm Keihin throttle bodies (4) and oval sub-throttles
Ignition
TCBI with digital advance
Transmission
6-speed, return shift
Final Drive
Sealed chain
Performance
Electronic Rider Aids
Kawasaki Traction Control (KTRC), Power Mode, Kawasaki Intelligent anti-lock Brake System (KIBS), Kawasaki Quick Shifter (KQS) (upshift only)
Front Suspension / Wheel Travel
41mm inverted Showa SFF-BP fork with top-out springs, stepless compression and rebound damping, adjustable spring preload/4.7 in
Rear Suspension / Wheel Travel
Bottom-link Uni-Trak® with gas-charged shock, stepless compression damping adjustment, 25-way adjustable rebound damping, fully adjustable spring preload/5.9 in
Front Tire
120/70 ZR17
Rear Tire
180/55 ZR17
Front Brakes
Dual 310mm petal discs with dual radial-mounted Nissin 4-piston monobloc calipers and KIBS ABS
Rear Brakes
Single 210mm petal discs with single-piston caliper and KIBS ABS
Details
Frame Type
Tubular, diamond frame
Rake/Trail
23.5°/100 mm
Overall Length
2024 mm
Overall Width
711 mm
Overall Height
1100 mm
Ground Clearance
130 mm
Seat Height
830 mm
Curb Weight
195 kg
Fuel Capacity
17 liters
Wheelbase
1400 mm

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
