2020

ADDITIONAL VEHICLE FEATURES:

  • Assist and Slipper clutch
  • Integrated Riding Modes
  • Electronic Cruise Control
  • TFT Color Instrumentation
  • Kawasaki Quick Shifter (KQS)
  • Power Mode Selection
  • Smartphone Connectivity via RIDEOLOGY THE APP
  • Bridgestone BATTALAX Hypersport S22 Tires

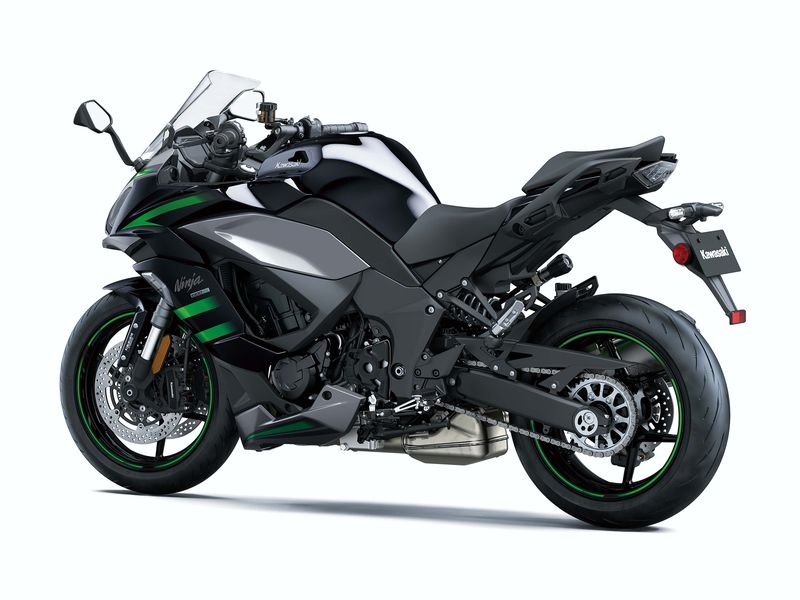

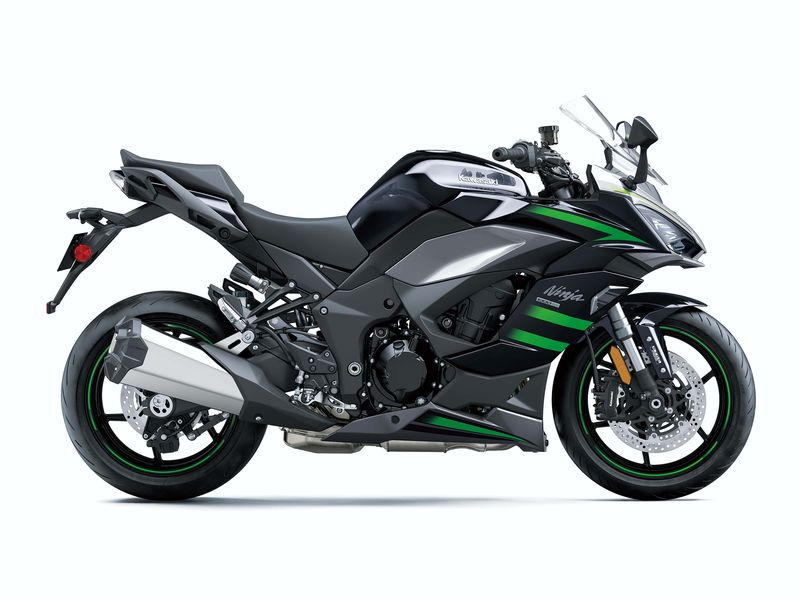

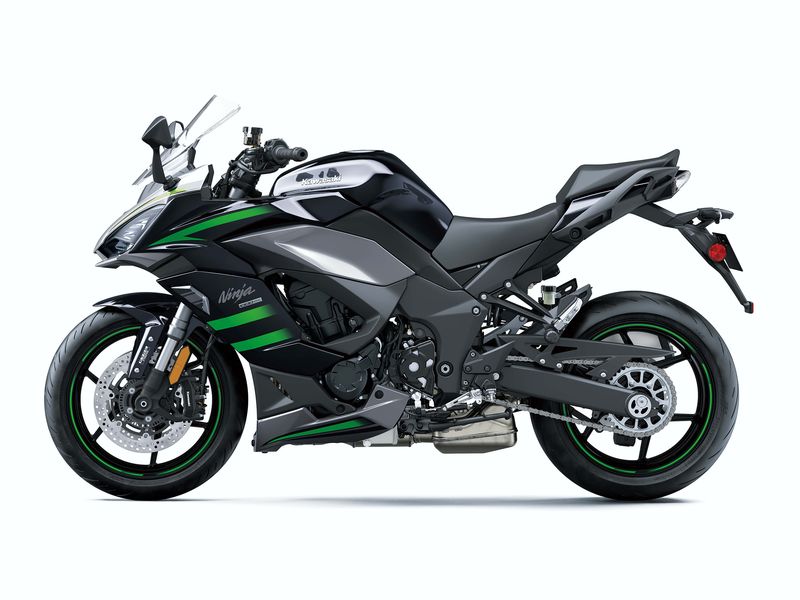

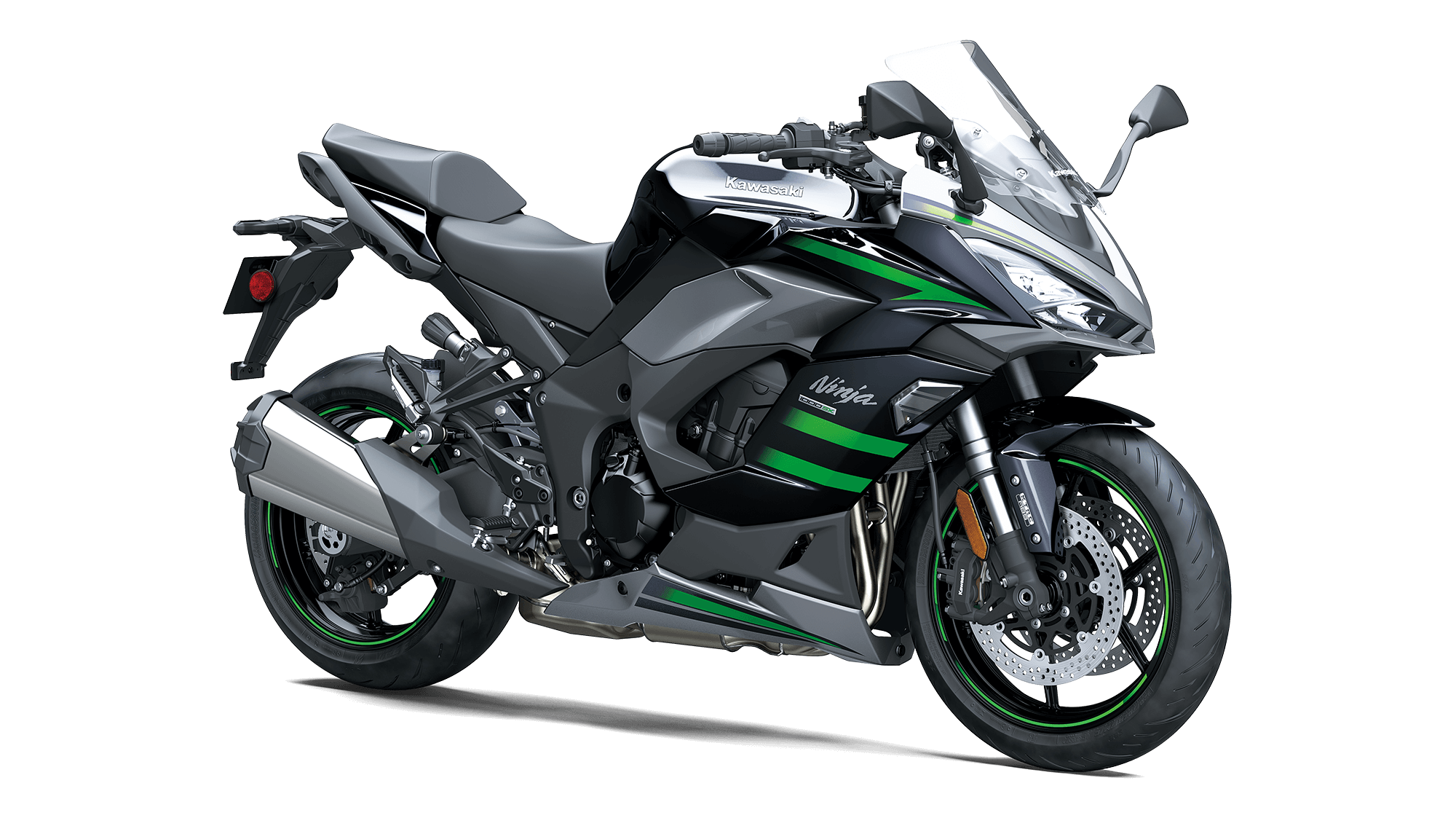

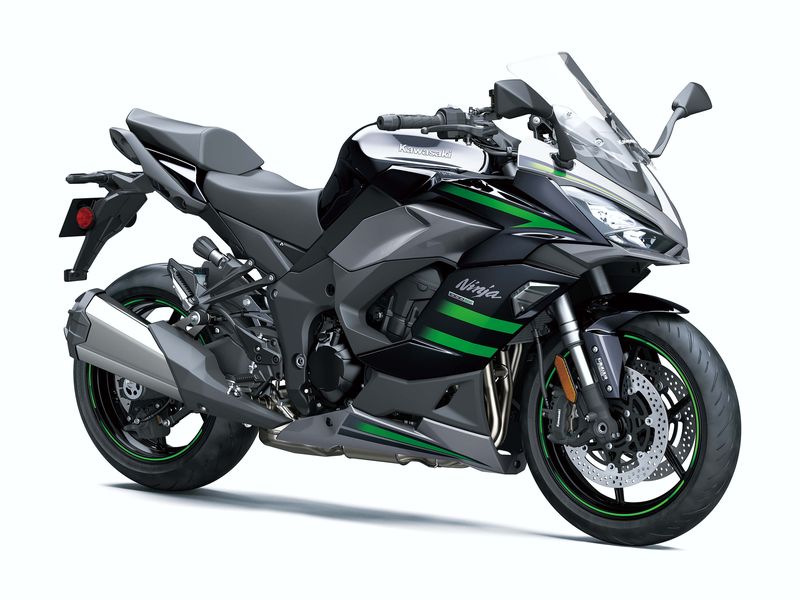

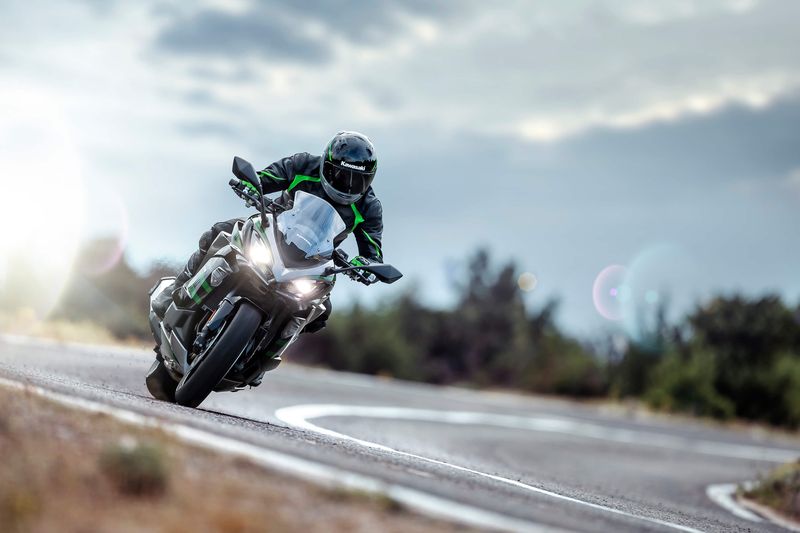

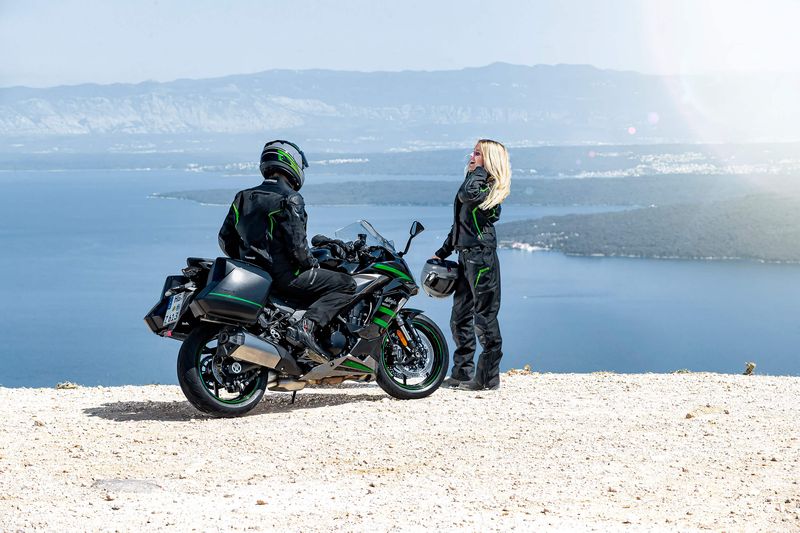

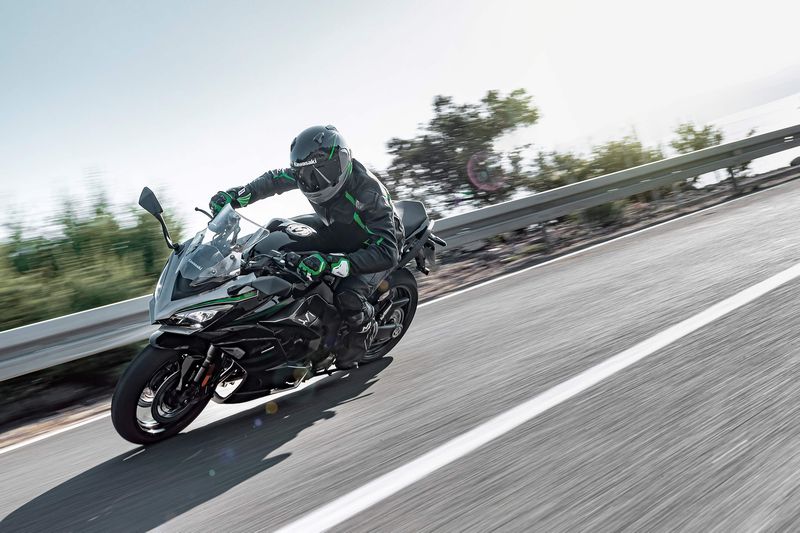

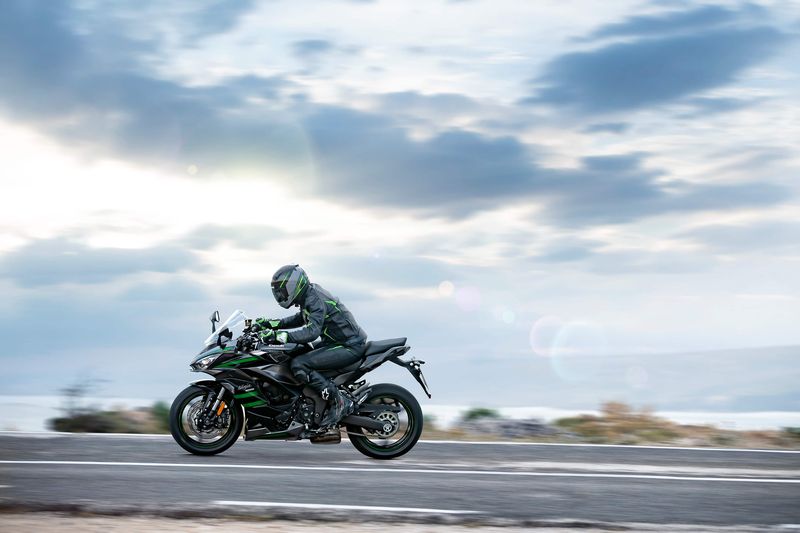

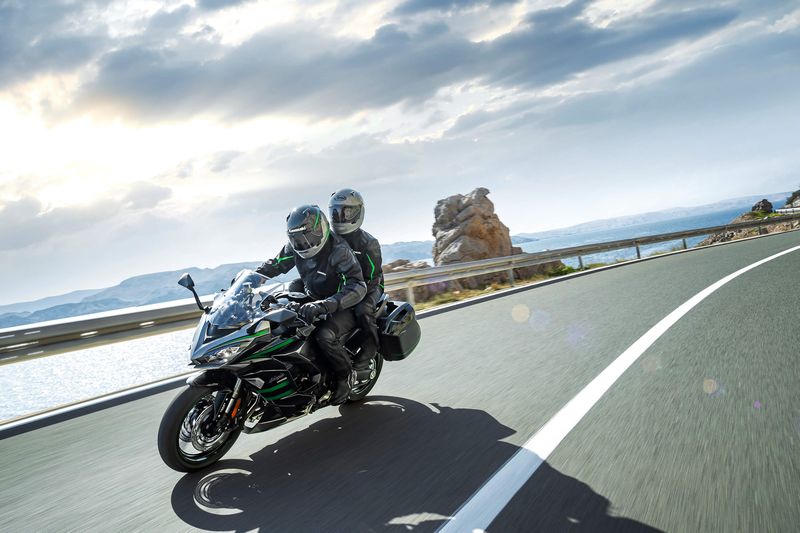

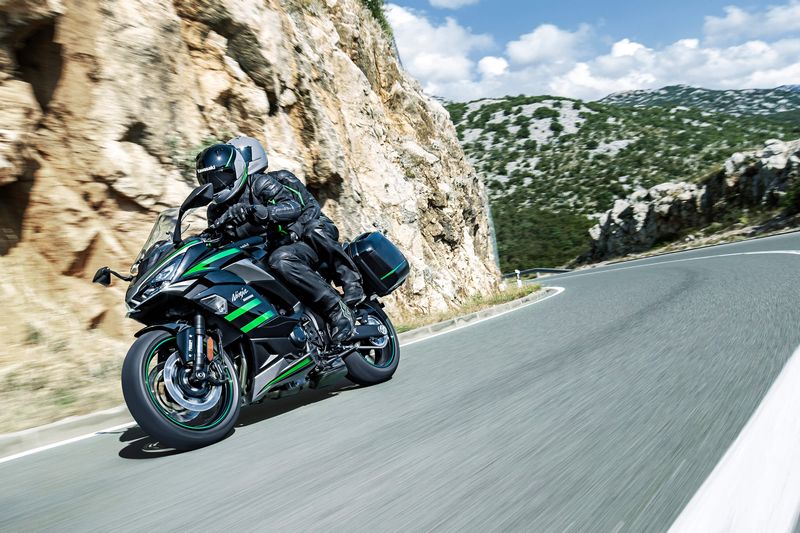

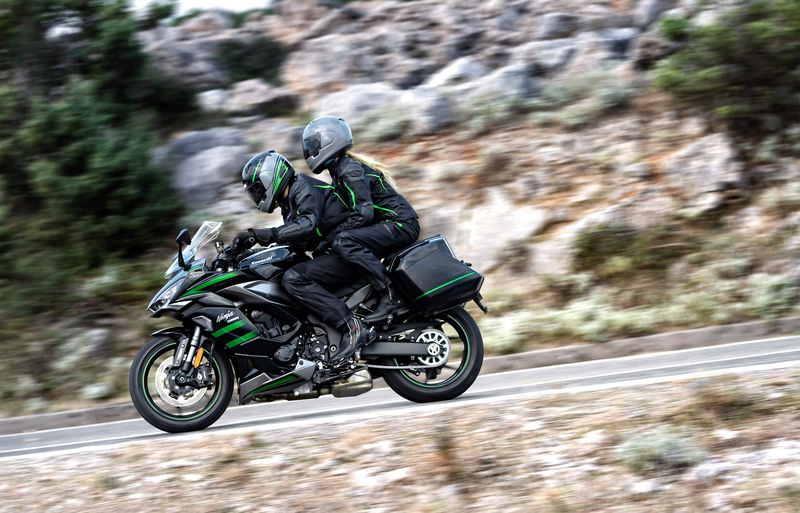

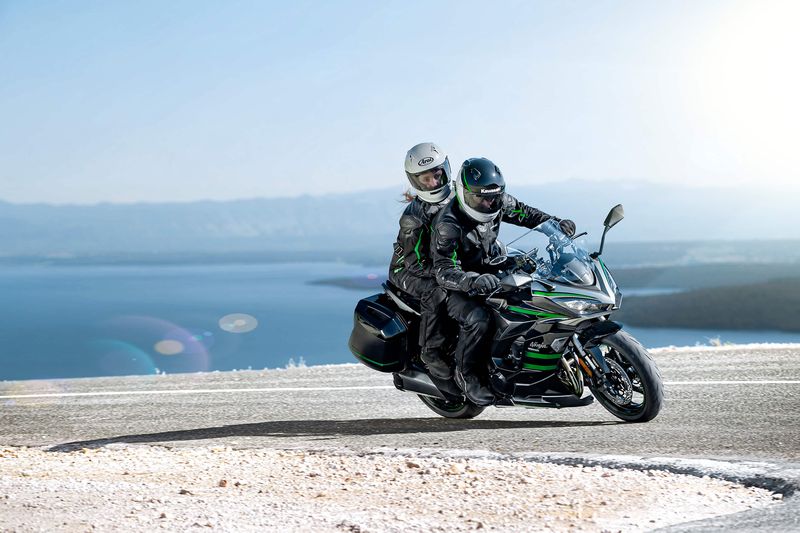

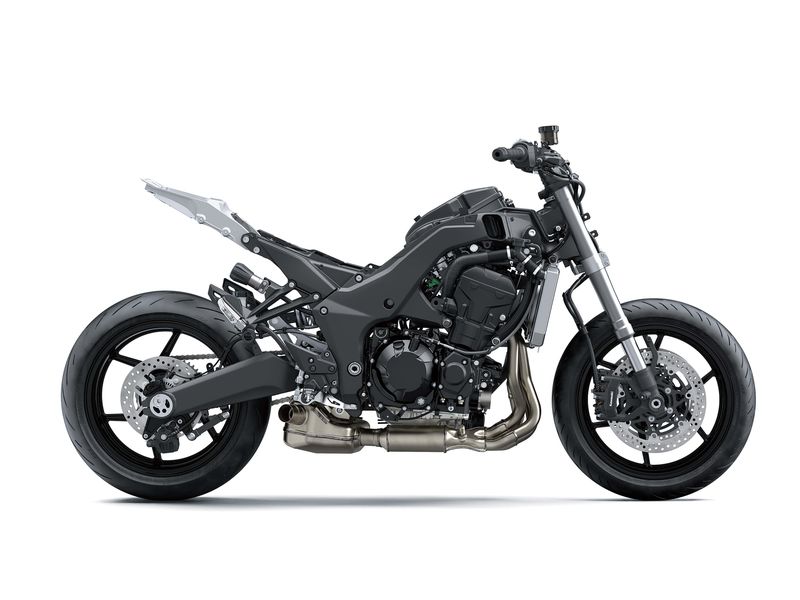

NINJA 1000SX
colors

METALLIC GRAPHITE GRAY/METALLIC DIABLO BLACK/EMERALD BLAZED GREEN

Power
Engine
4-stroke, In-Line Four, DOHC, 16-valve, liquid-cooled
Displacement
1043
Bore x Stroke
77.0 x 56.0mm
Compression Ratio
11.8:1
Fuel System
DFI® w/38mm electronic throttle valves
Ignition
TCBI with electronic advance
Transmission
6-speed, return shift
Final Drive
Sealed Chain
Performance
Electronic Rider Aids
Integrated Riding Modes, Kawasaki Traction Control (KTRC), Kawasaki Intelligent anti-lock Brake System (KIBS), Power Modes (2), Kawasaki Corner Management Function (KCMF), Kawasaki Quick Shifter (KQS)(upshift & downshift), Electronic Cruise Control
Front Suspension / Wheel Travel
41mm inverted cartridge fork with stepless compression and rebound damping, adjustable spring preload/4.7 in
Rear Suspension / Wheel Travel
Horizontal monoshock with stepless rebound damping, remotely adjustable spring preload/5.7 in
Front Tire
120/70 ZR17
Rear Tire
190/50 ZR17
Front Brakes
Dual 300mm petal-type rotors with radial-mount 4-piston monobloc calipers and ABS
Rear Brakes
Single 250mm petal-type rotor with single-piston caliper and ABS
Details
Frame Type
Aluminum backbone
Rake/Trail
24.0°/3.9 in
Overall Length
2101
Overall Width
800
Overall Height
1191
Ground Clearance
135 mm
Seat Height
820
Curb Weight
233 kg
Fuel Capacity
19 liters
Wheelbase
1440 mm
Color Choices
Metallic Graphite Gray/Metallic Diablo Black

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
