2021

ADDITIONAL VEHICLE FEATURES:

  • 19-inch front wheel and 16-inch rear wheel
  • 34.3-inch seat height, 13-inch ground clearance
  • Front and rear disc brakes

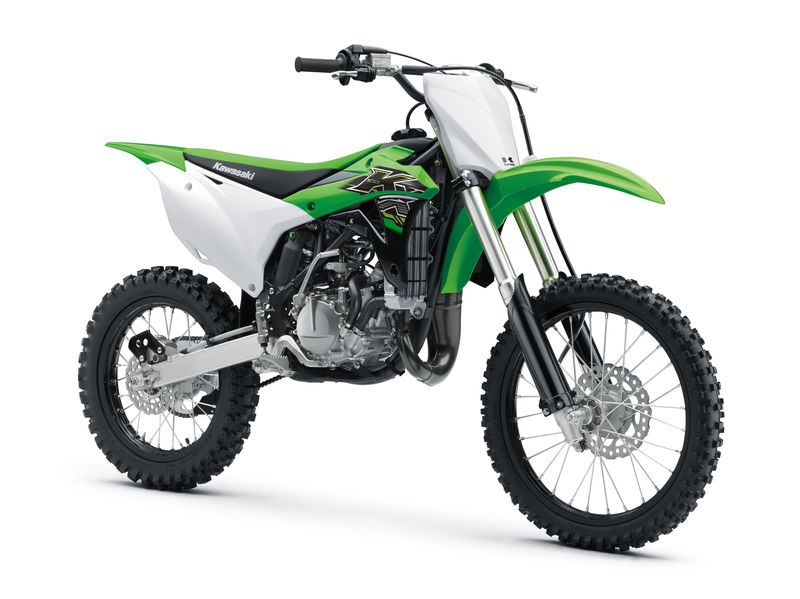

KX100
Power
Engine
2-Stroke, Liquid-Cooled, Reed Valve, Single with KIPS
Displacement
99 cc
Bore x Stroke
52.5 x 45.8 mm
Compression Ratio
8.7-10.2:1
Fuel System
Carburetor Keihin PWK28
Ignition
Digital CDI
Transmission
6-speed, return
Final Drive
Chain
Starting System
Primary kick
Performance
Front Suspension / Wheel Travel
ø36 mm inverted fork with adjustable compression damping / 275 mm
Rear Suspension / Wheel Travel
Uni Trak with adjustable compression and rebound damping and adjustable preload / 275 mm
Front Tire
70/100-19 42M
Rear Tire
90/100-16 52M
Front Brakes
ø220 mm petal disc with dual-piston caliper
Rear Brakes
ø184 mm petal disc with single-piston caliper
Lubrication
Pre-mix (32:1)
Steering
45° / 45°
Details
Frame Type
Perimeter, high-tensile steel
Rake/Trail
29° / 108 mm
Overall Length
1,920 mm
Overall Width
765 mm
Overall Height
1,150 mm
Ground Clearance
330 mm
Seat Height
870 mm
Curb Weight
77 kg
Fuel Capacity
5 litres
Wheelbase
1,310 mm

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
