2020

ADDITIONAL VEHICLE FEATURES:

  • Authentic W1 inspired styling
  • Disc brakes with ABS
  • Chrome-plated steel fenders
  • Large round turn signals
  • Standard handlebar
  • Large 19" front wheel and 18" back wheel
  • Relaxed riding position
  • Silver alumite rims
  • Tuck & roll seat
  • Kawasaki Advanced Dynamic Analysis Designed Frame

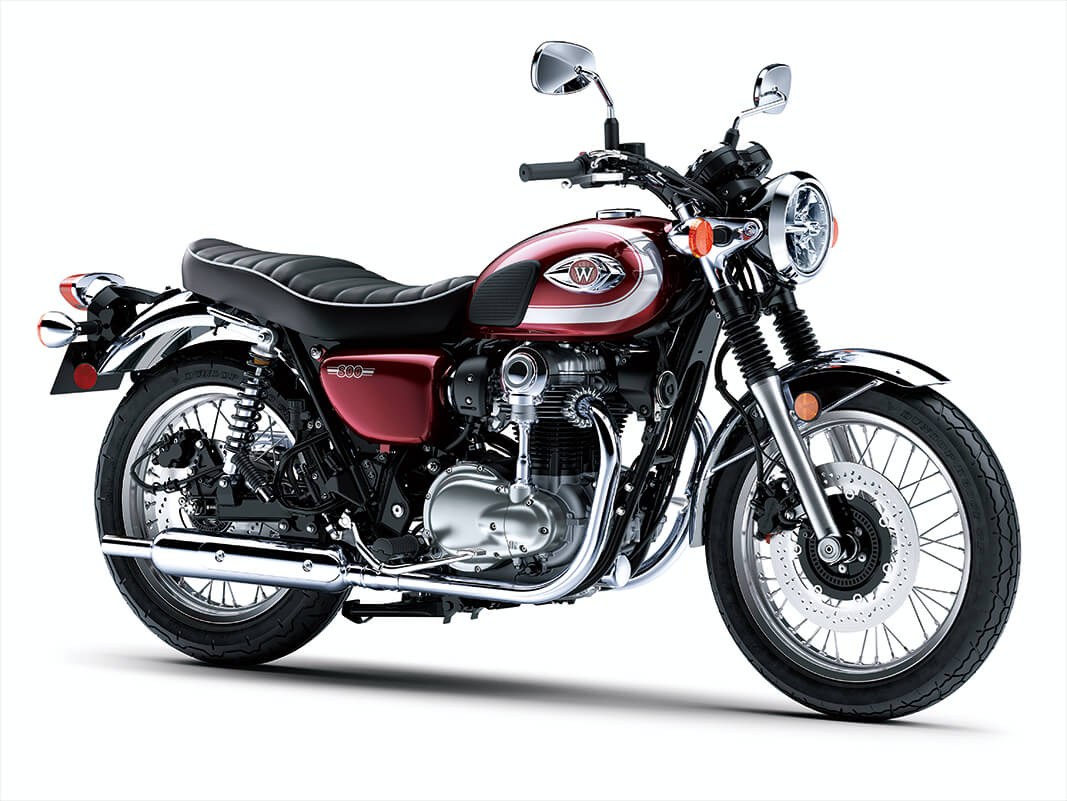

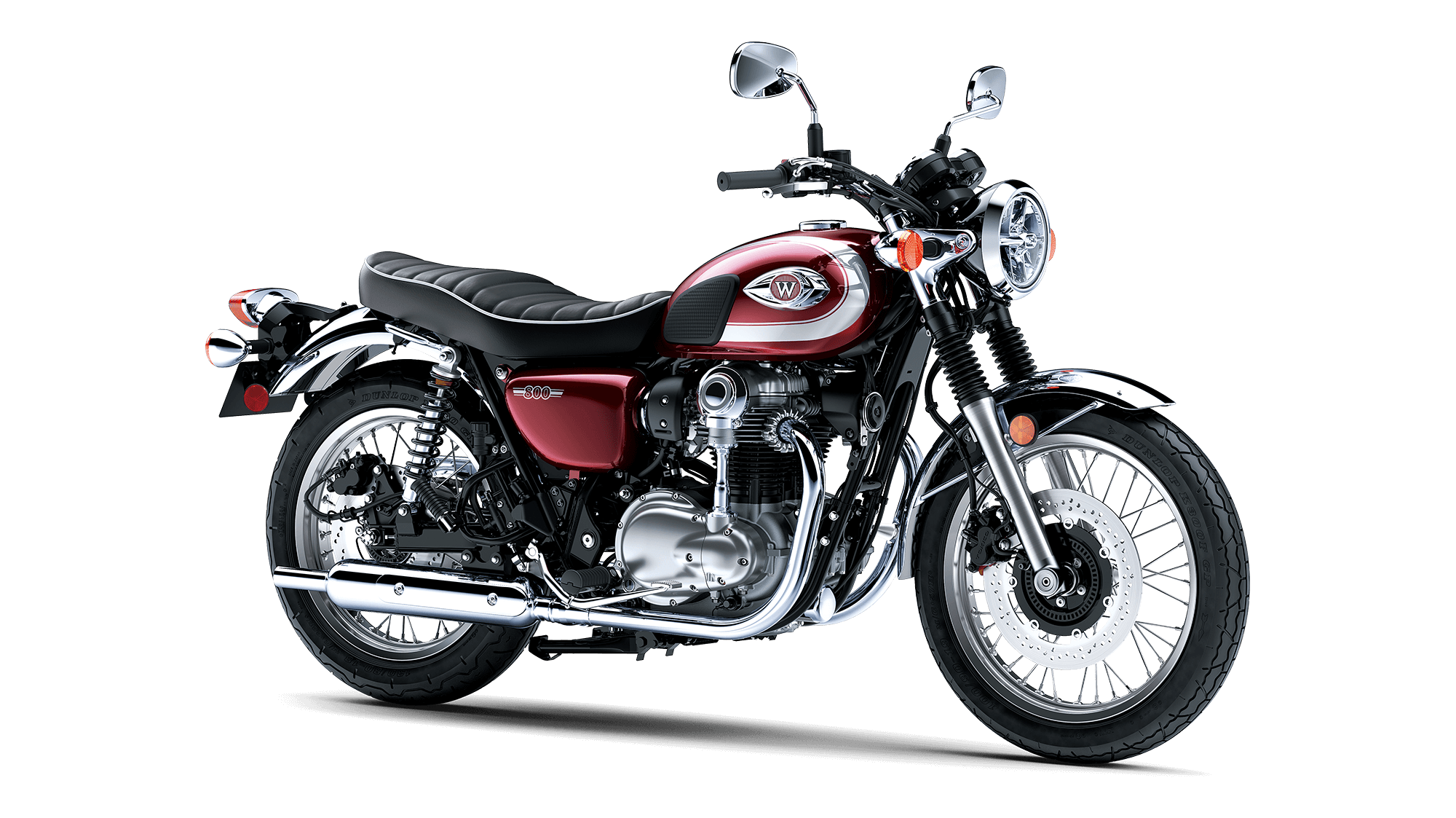

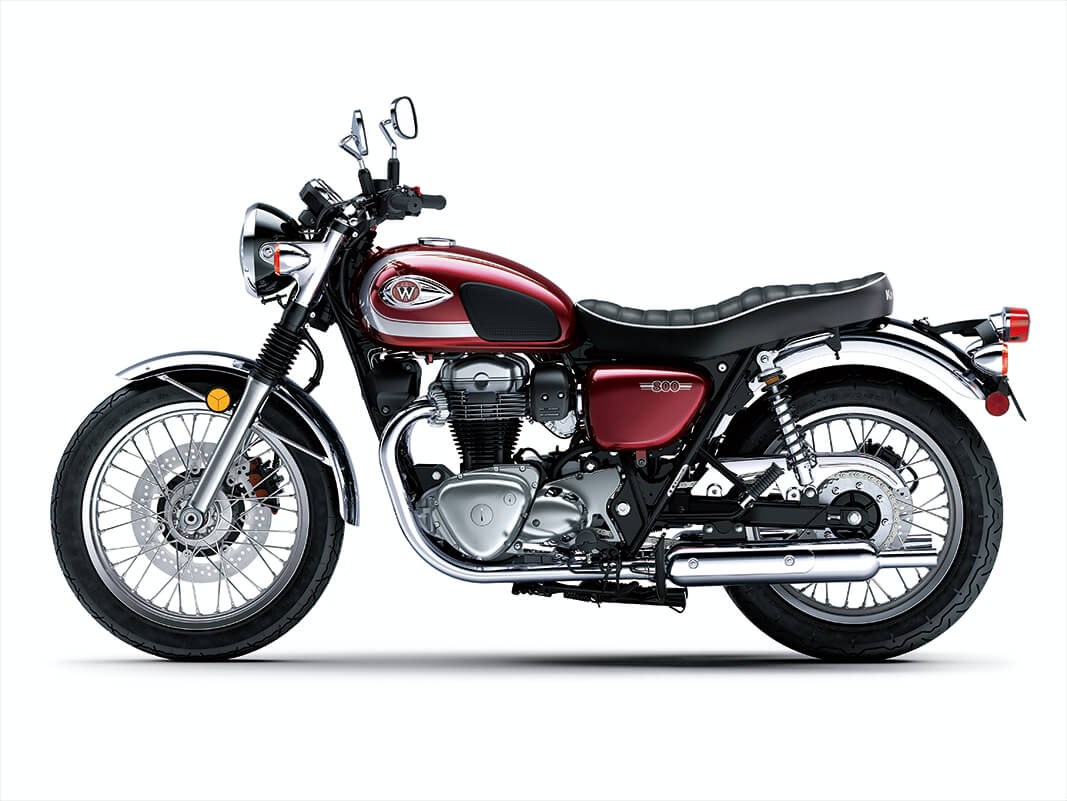

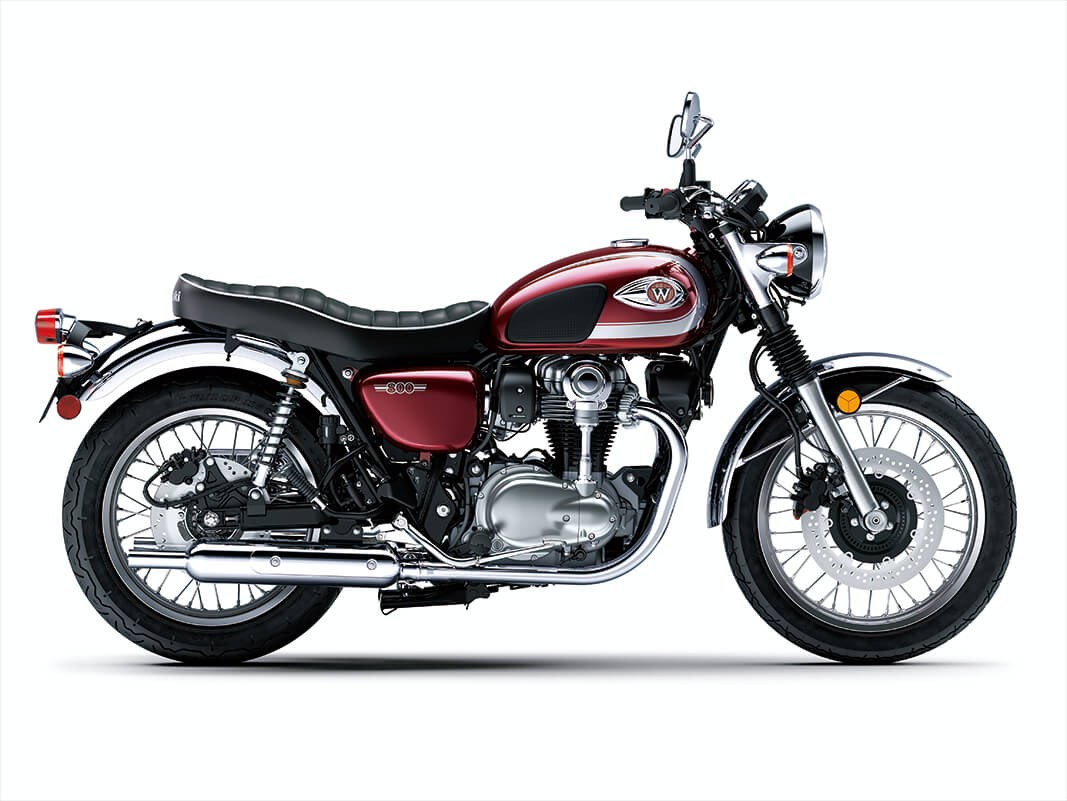

W800
Power
Engine
4-stroke, vertical twin, SOHC, 8 valves, air-cooled
Displacement
773
Bore x Stroke
77.0 x 83.0mm
Compression Ratio
8.4:1
Fuel System
DFI® with 34mm throttle bodies (2)
Ignition
TCBI w/digital advance
Transmission
5-speed, return shift
Final Drive
Sealed chain
Performance
Front Suspension / Wheel Travel
41mm telescopic fork with/5.1 in.
Rear Suspension / Wheel Travel
Twin shocks with spring preload adjustability/4.2 in
Front Tire
100/90-19
Rear Tire
130/80-18
Front Brakes
Single 320mm petal-style disc with 2-piston calipers, ABS
Rear Brakes
Single 270mm petal-style disc with 2-piston caliper, ABS
Details
Frame Type
Double-cradle high tensile steel
Rake/Trail
26.0° / 3.7 in.
Overall Length
1427
Overall Width
790
Overall Height
1074
Ground Clearance
124 mm
Seat Height
790
Curb Weight
225 kg
Fuel Capacity
15 liters
Wheelbase
1466 mm
Color Choices
Candy Cardinal Red

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
