2020

ADDITIONAL VEHICLE FEATURES:

  • Ninja®-derived power and performance
  • Sporty handling
  • Adjustable riding positions
  • Three-tone paint
  • Signature tank badging
  • Sport striping
  • Dark-tinted windshield deflector

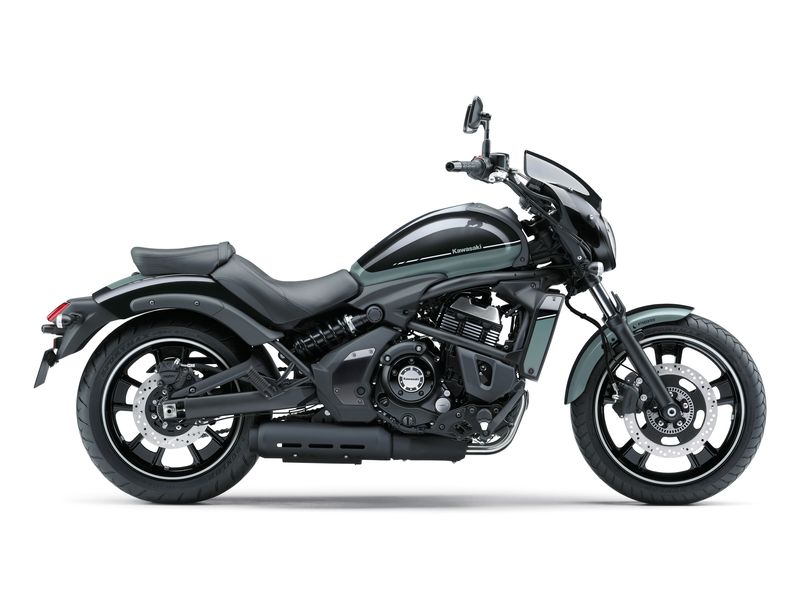

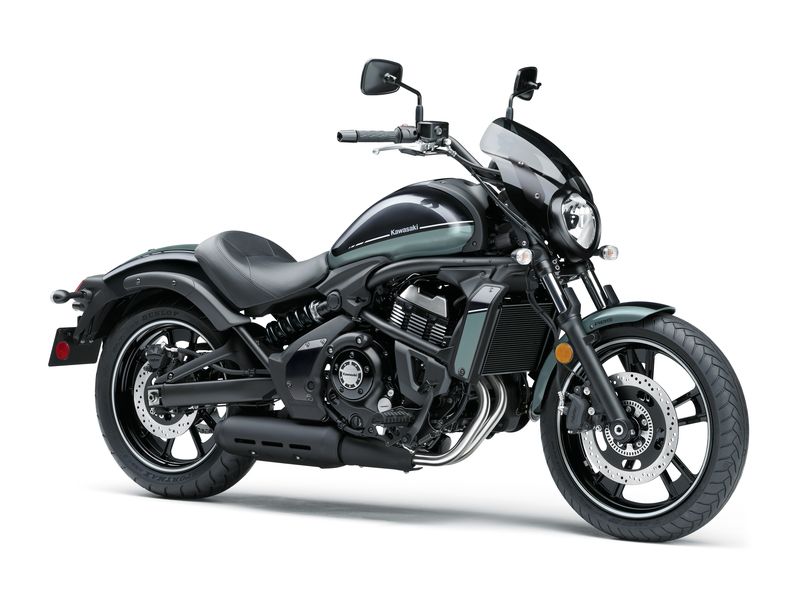

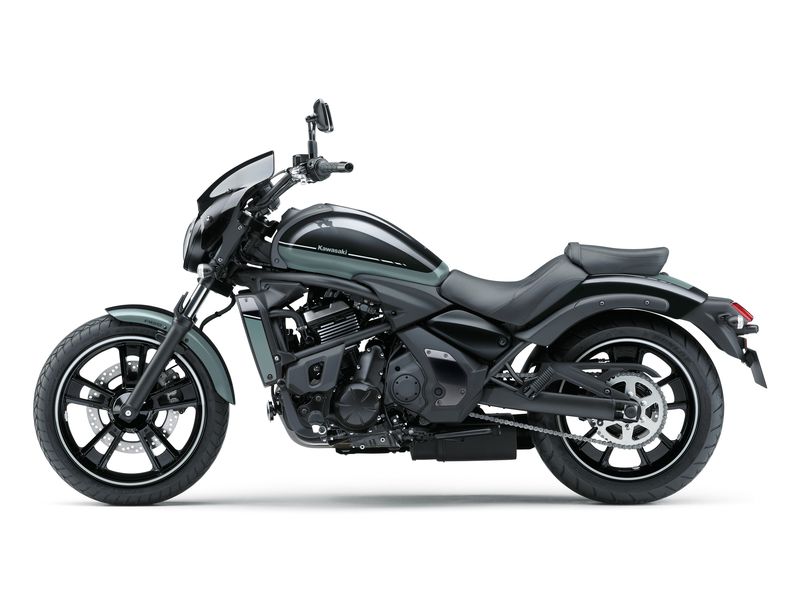

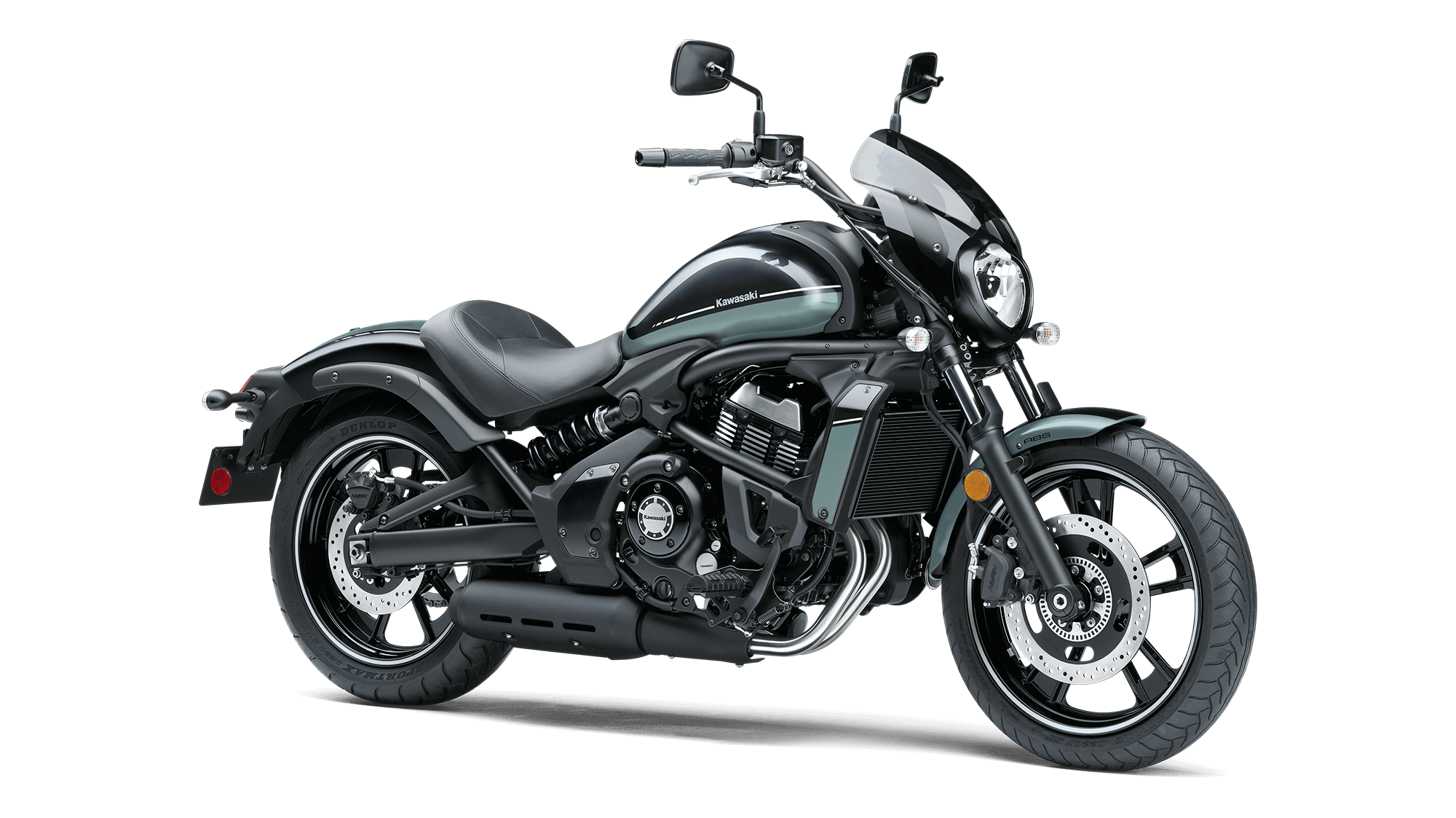

VULCAN S ABS CAFE
Power
Engine
4-stroke, 2-cylinder, DOHC, liquid-cooled
Displacement
649
Bore x Stroke
83.0 x 60.0mm
Compression Ratio
10.8:1
Fuel System
DFI® 38mm throttle bodies (2), with sub-throttle valves
Ignition
TCBI with digital advance
Transmission
6-speed with positive neutral finder
Final Drive
Sealed Chain
Performance
Front Suspension / Wheel Travel
41mm telescopic fork/5.1 in
Rear Suspension / Wheel Travel
Lay-down offset rear shock with linkage and adjustable preload/3.1 in
Front Tire
120/70x18
Rear Tire
160/60x17
Front Brakes
Single 300mm disc with twin-piston caliper, ABS
Rear Brakes
Single 250mm disc with single-piston caliper, ABS
Details
Frame Type
High-tensile steel diamond frame
Rake/Trail
31°/4.7 in
Overall Length
2309
Overall Width
879
Overall Height
1130
Ground Clearance
130
Seat Height
706
Curb Weight
228 kg
Fuel Capacity
14 liters
Wheelbase
1575 mm
Color Choices
Phantom Blue/ Ebony

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
