2020

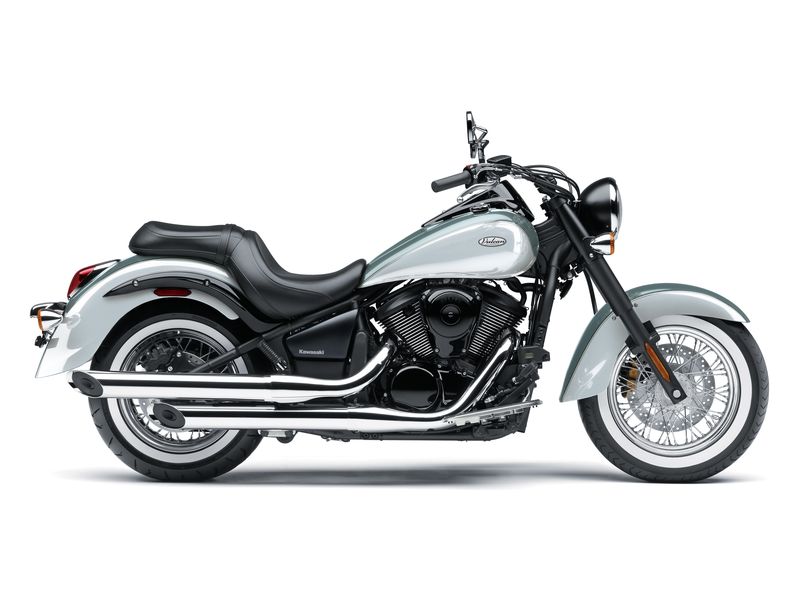

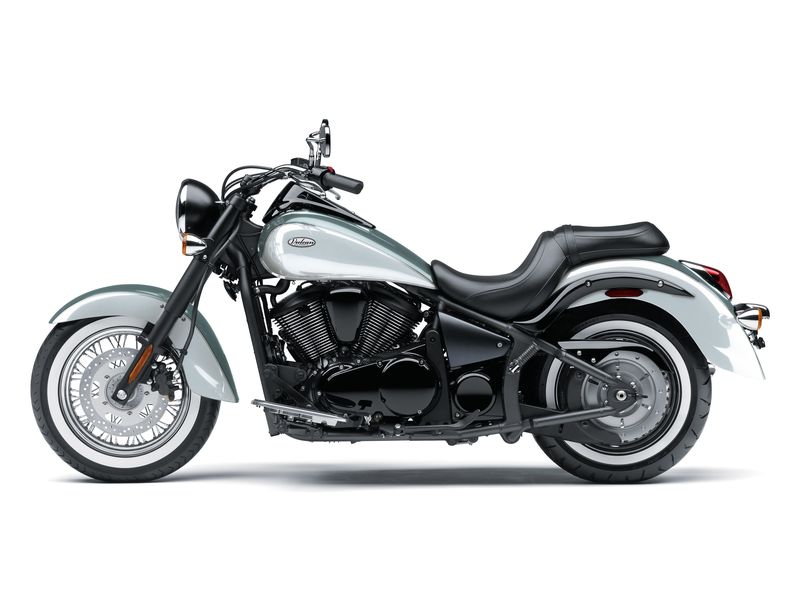

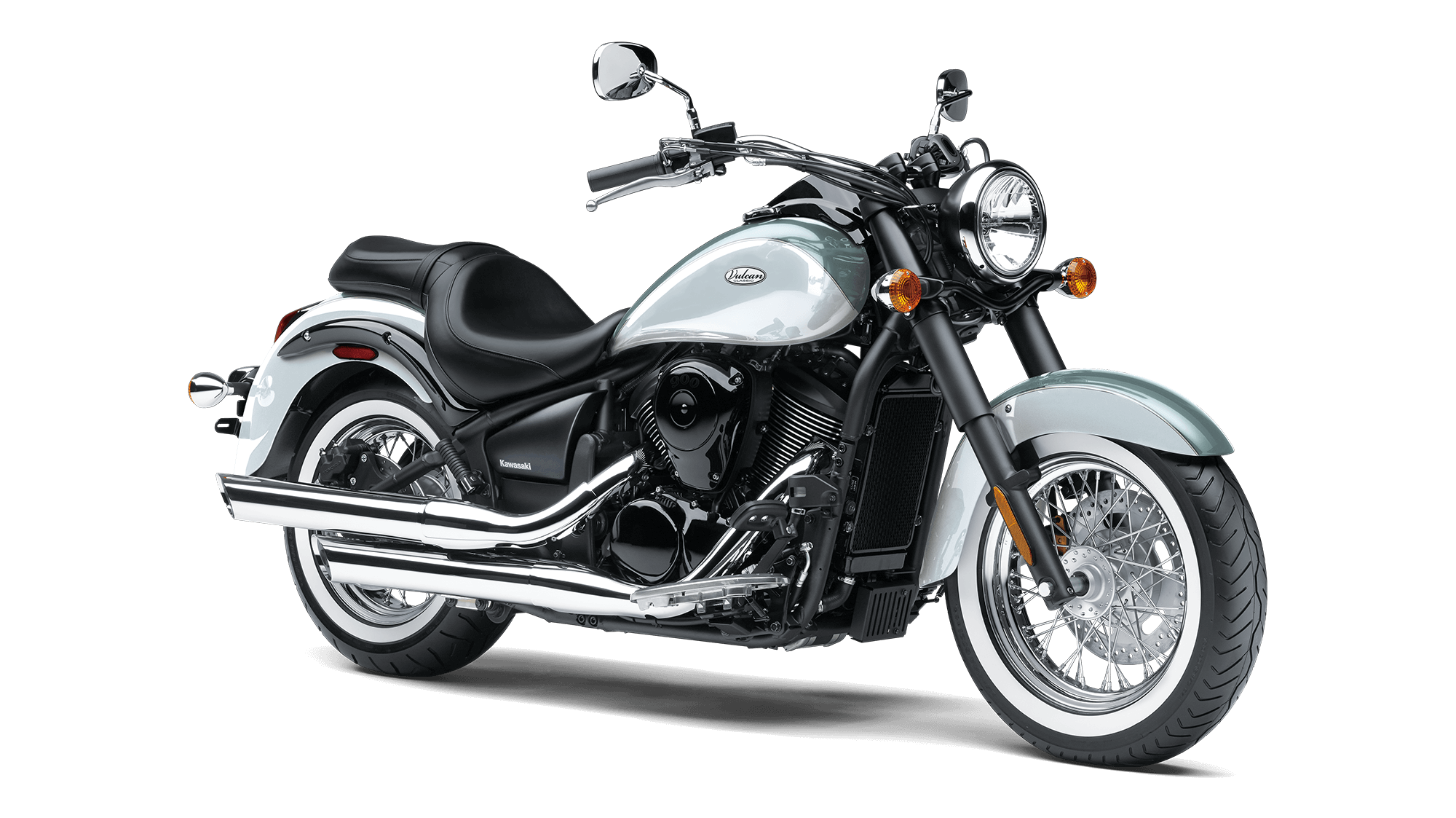

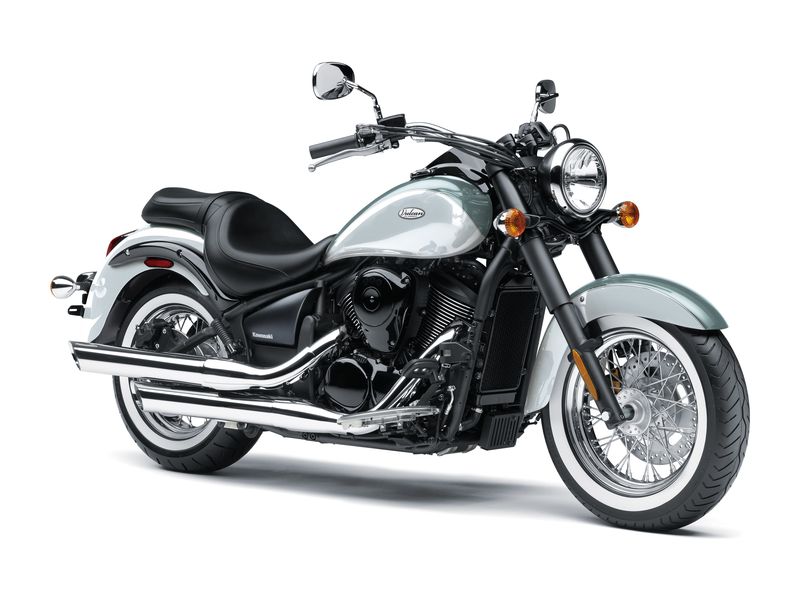

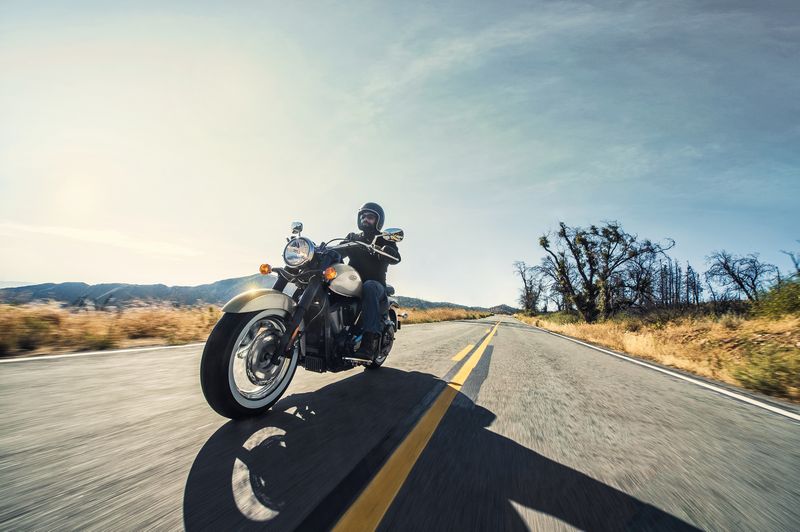

VULCAN 900 CLASSIC
colors

PHANTOM BLUE/PEARL BLIZZARD WHITE

Power
Engine
4-stroke, 55° V-twin, 4 valves per cylinder, SOHC, liquid-cooled
Displacement
903
Bore x Stroke
88.0 x 74.2mm
Compression Ratio
9.5:1
Fuel System
DFI® 34mm throttle bodies (2), with sub-throttle valves
Ignition
TCBI with digital advance
Transmission
5-speed with positive neutral finder
Final Drive
Kevlar-reinforced belt
Performance
Front Suspension / Wheel Travel
41mm hydraulic telescopic fork/5.9 in
Rear Suspension / Wheel Travel
Uni-Trak® swingarm, 7-way adjustable spring preload/4.1 in
Front Tire
130/90x16
Rear Tire
180/70x15
Front Brakes
Single 300mm hydraulic disc
Rear Brakes
Single 270mm hydraulic disc
Details
Frame Type
Semi-double cradle, high-tensile steel
Rake/Trail
32°/6.3 in
Overall Length
2464
Overall Width
1006
Overall Height
1064
Ground Clearance
135 mm
Seat Height
681
Curb Weight
281 kg
Fuel Capacity
20 liters
Wheelbase
1646 mm
Color Choices
Phantom Blue/ Pearl Blizzard White

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
