2020

ADDITIONAL VEHICLE FEATURES:

  • Maxxis® Bighorn tires
  • Double-X steel tube frame
  • Large sealed storage space
  • Tilting cargo bed
  • Four LED Headlights
  • Sun Top
  • Realtree Xtra® Green Camo Bodywork

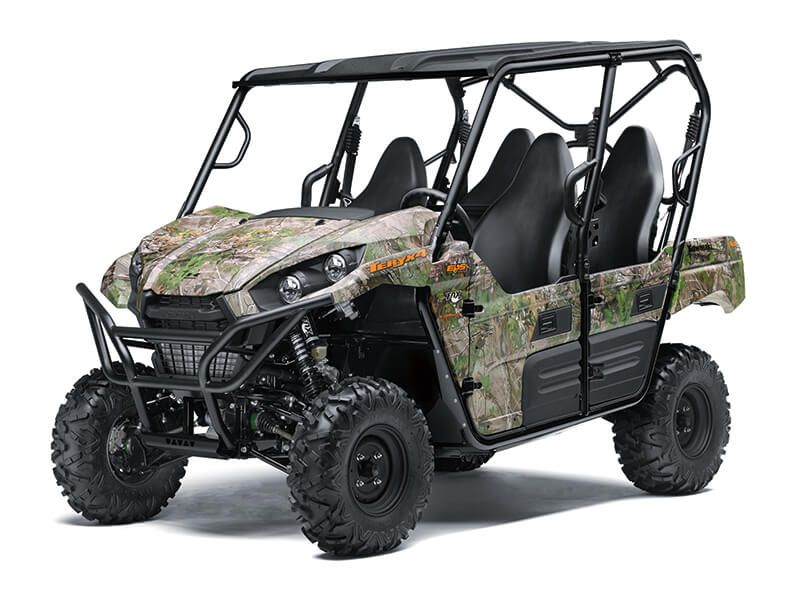

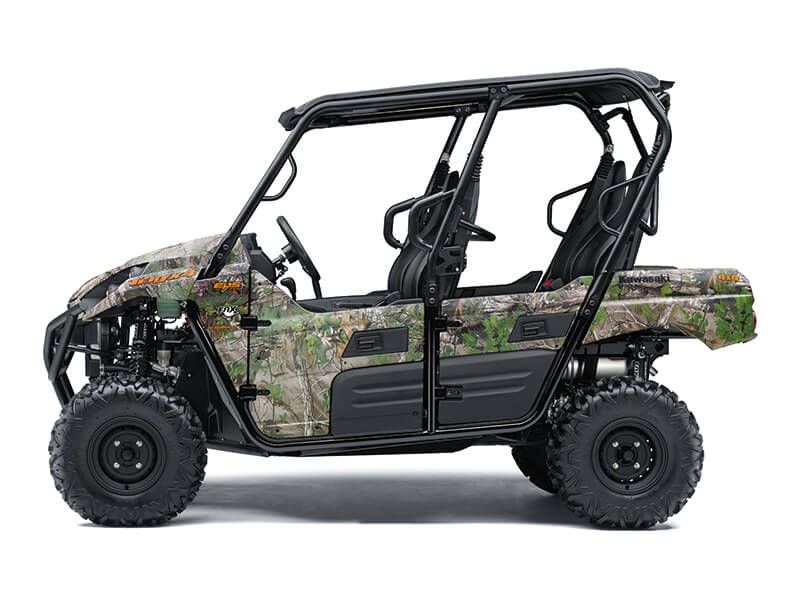

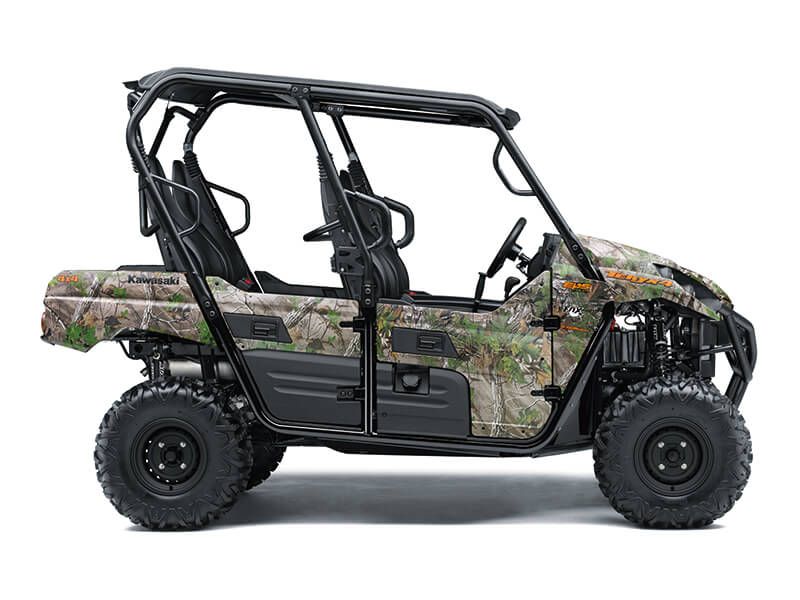

TERYX4 CAMO
colors

REALTREE XTRA® GREEN CAMO

Power
Engine
4-stroke, SOHC, 4-valve V-twin, liquid-cooled
Displacement
783
Bore x Stroke
85.0 x 69.0mm
Compression Ratio
10.7:1
Fuel System
DFI® with two 36mm Mikuni throttle bodies
Ignition
TCBI with electronic advance
Transmission
Automatic CVT with centrifugal clutch (H,L,N,R)
Final Drive
Selectable 2WD/4WD with locking front differential, shaft
Starting System
Electric
Performance
Front Suspension / Wheel Travel
Double Wishbone; Fox Podium coil-over shocks with piggyback reservoir, adjustable preload and 24-way compression damping/8.0 in.
Rear Suspension / Wheel Travel
Double Wishbone; Fox Podium coil-over shocks with piggyback reservoir, adjustable preload and 24-way compression damping/8.3 in.
Front Tire
Maxxis 26 x 9-12
Rear Tire
Maxxis 26 x 11-12
Front Brakes
Dual hydraulic discs with two-piston calipers
Rear Brakes
Sealed, oil-bathed, multi-disc
Steering
Electric Power Steering (EPS) / rack-and-pinion
Turning Radius
5090 mm
Details
Frame Type
Steel Tube Double-X Reinforcement
Overall Length
3185
Overall Width
1524
Overall Height
2024
Ground Clearance
285 mm
Curb Weight
736 kg
Fuel Capacity
30 Litres
Wheelbase
2174 mm
Color Choices
Realtree Xtra® Green Camo
Seating Capacity
4

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
