2020

ADDITIONAL VEHICLE FEATURES:

  • High Performance Showa Suspension Components
  • Brembo® Monobloc Brake Calipers
  • Kawasaki Quick Shifter (KQS)
  • Kawasaki Launch Control Mode (KLCM)
  • Kawasaki Cornering Management Function (KCMF)
  • Electronic Cruise Control
  • Integrated Riding Modes
  • Assist & Slipper Clutch
  • All Digital TFT Color Instrumentation
  • Smartphone Connectivity via RIDEOLOGY THE APP
  • All LED Lighting

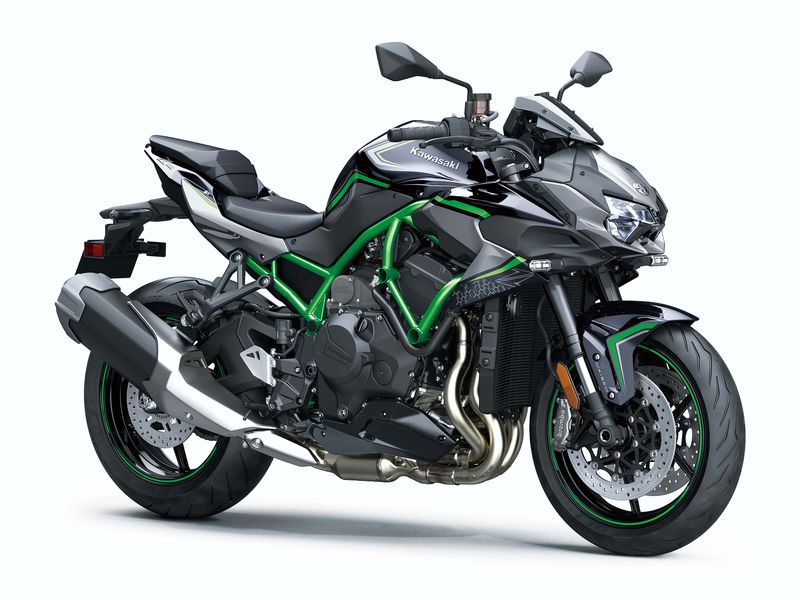

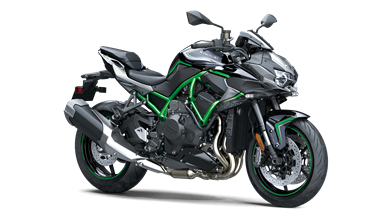

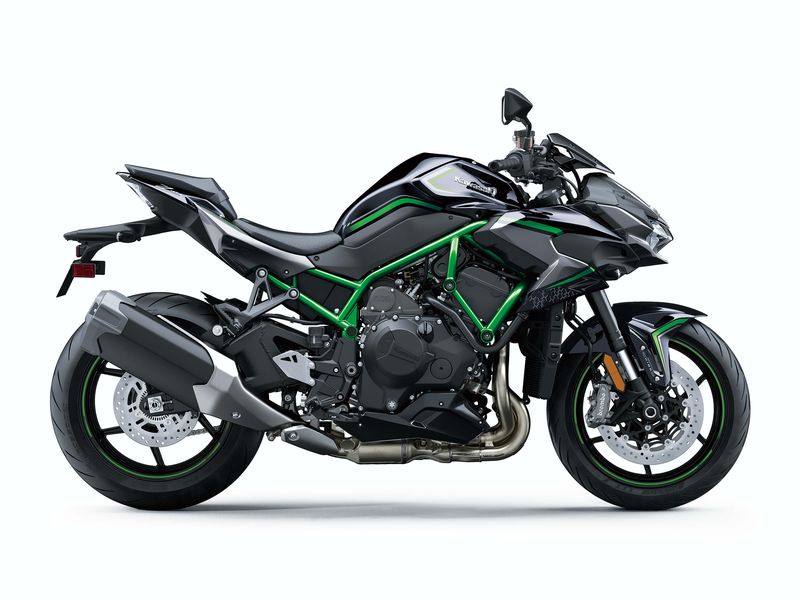

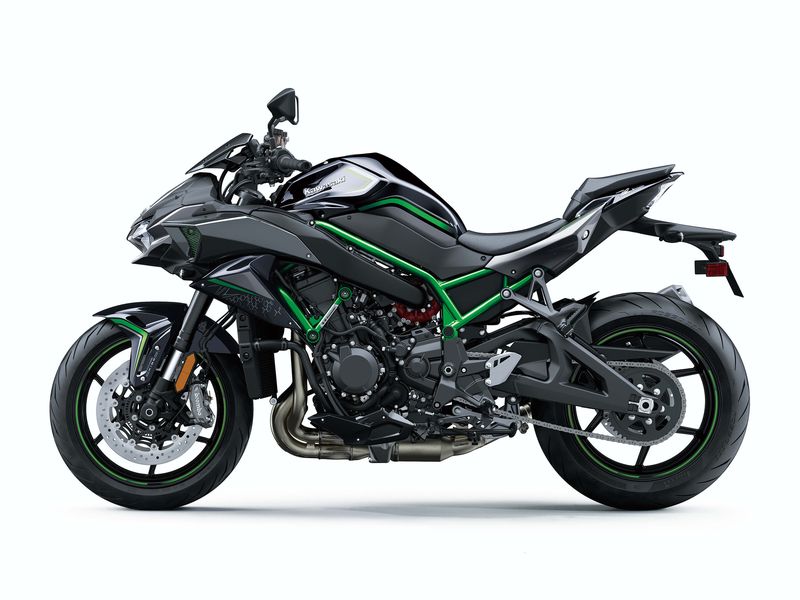

Z H2
colors

METALLIC SPARK BLACK/METALLIC GRAPHITE GRAY/MIRROR COATED SPARK BLACK

Power
Engine
4-stroke, 4-cylinder, DOHC, 4-valve, liquid-cooled, supercharged
Displacement
998
Bore x Stroke
76.0 x 55.0mm
Compression Ratio
11.2:1
Fuel System
DFI® with 36mm Keihin throttle bodies
Ignition
TCBI with electronic advance
Transmission
6-speed dog-ring, return shift
Final Drive
Sealed chain
Performance
Electronic Rider Aids
Integrated Riding Modes, Kawasaki Cornering Management Function (KCMF), Power Modes (3), Kawasaki Launch Control Mode (KLCM), Kawasaki Traction Control (KTRC), Kawasaki Launch Control Mode (KLCM), Kawasaki Engine Brake Control (KEBC), Kawasaki Intelligent anti-lock Brake System (KIBS), Kawasaki Quick Shifter (KQS) (upshift & downshift), Electronic Cruise Control
Front Suspension / Wheel Travel
Showa SFF-BP Fork with Adjustable Compression and Rebound Damping, Spring Preload Adjustability
Rear Suspension / Wheel Travel
New Uni-Trak®, Showa Gas-Charged Shock with Adjustable Compression and Rebound Damping, Preload Adjustability
Front Tire
120/70-17
Rear Tire
190/55-17
Front Brakes
Dual Disc w/Radial-mount M4.32 Calipers, ABS
Rear Brakes
Single 250mm petal-style disc with single-piston caliper, ABS
Details
Frame Type
Trellis, high tensile steel
Rake/Trail
24.9°/4.1in
Overall Length
2085
Overall Width
810
Overall Height
1130
Ground Clearance
140 mm
Seat Height
831
Curb Weight
239 kg
Fuel Capacity
19 liters
Wheelbase
1455 mm
Color Choices
Metallic Spark Black/Metallic Graphite Gray/Mirror Coated Spark Black

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
