2020

ADDITIONAL VEHICLE FEATURES:

  • Closed-course only hypersport
  • Carbon fiber aerodynamic devices
  • Bosch IMU with Kawasaki's dynamic modeling software
  • Kawasaki Launch Control Mode (KLCM)
  • Lightweight cast aluminum wheels
  • New Brembo Stylema® monobloc calipers

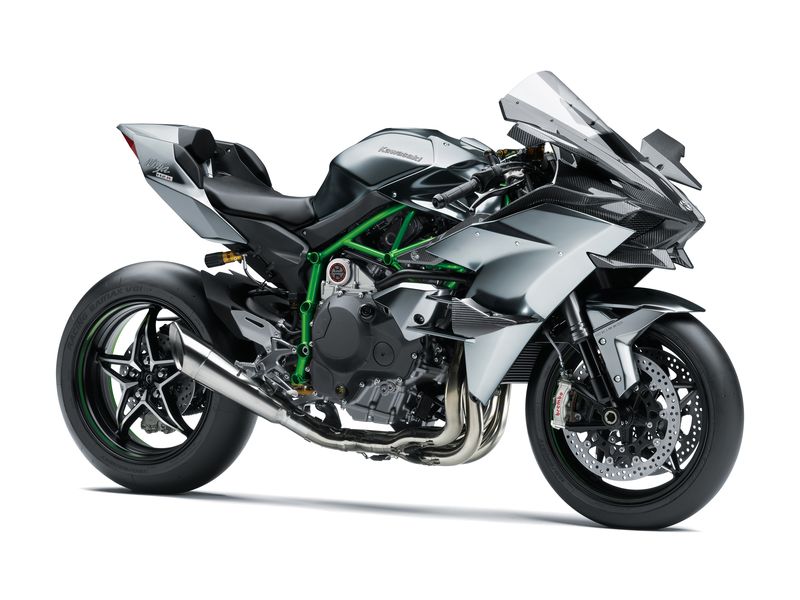

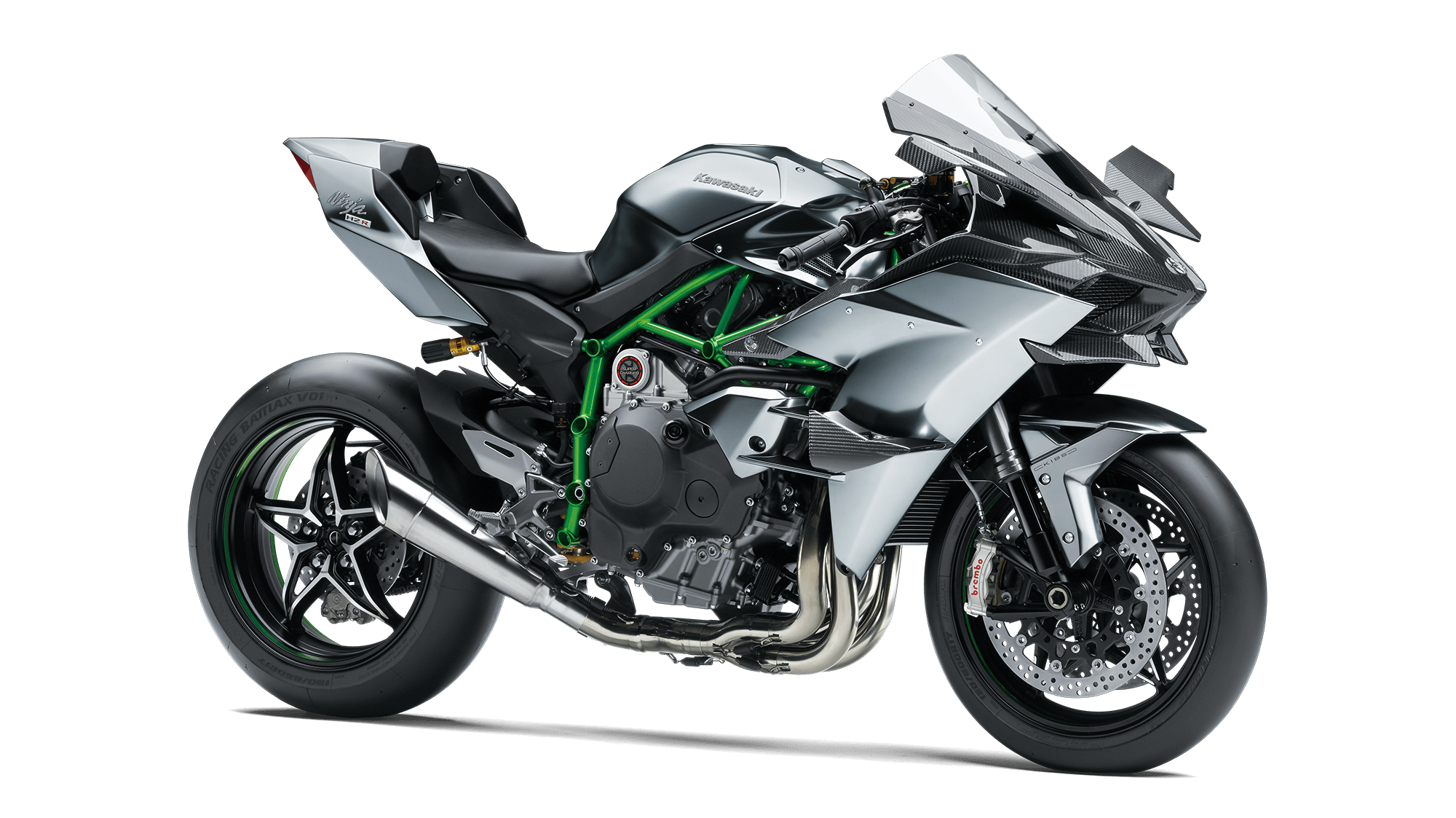

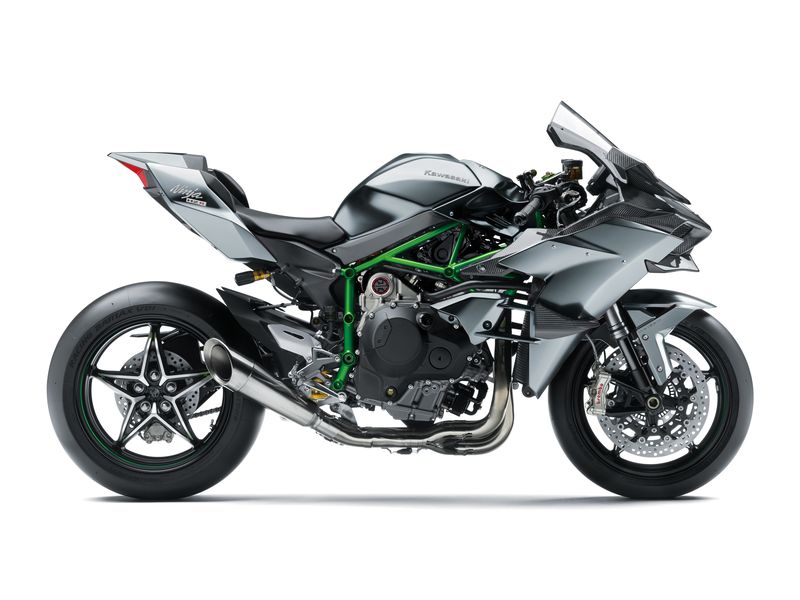

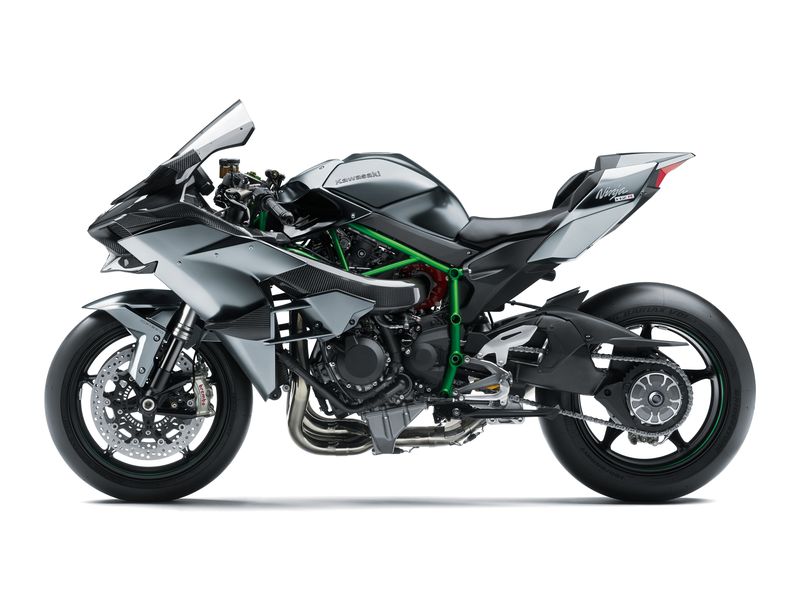

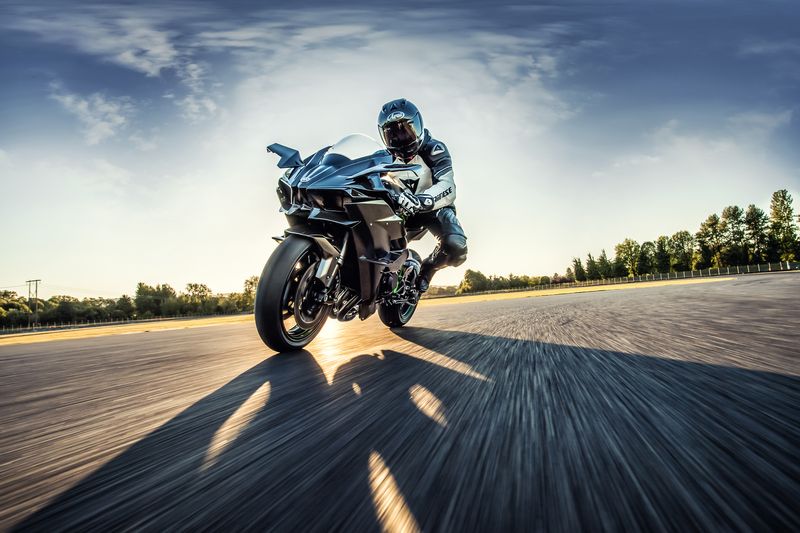

NINJA H2 R
colors

MIRROR COATED MATTE SPARK BLACK

Power
Engine
4-stroke, 4-cylinder, DOHC, 4-valve, liquid-cooled, supercharged
Displacement
998
Bore x Stroke
76.0 x 55.0mm
Compression Ratio
8.3:1
Fuel System
DFI® with 50mm throttle bodies (4) with dual injection
Ignition
Digital
Transmission
6-speed, return, dog-ring
Final Drive
Sealed chain
Performance
Electronic Rider Aids
Kawasaki Cornering Management Function (KCMF), Kawasaki Traction Control (KTRC), Kawasaki Launch Control Mode (KLCM), Kawasaki Intelligent anti-lock Brake System (KIBS), Kawasaki Engine Brake Control, Kawasaki Quick Shifter (KQS) (upshift & downshift), Öhlins Electronic Steering Damper
Front Suspension / Wheel Travel
43mm inverted fork with adjustable rebound and compression damping, spring preload adjustability and top-out springs/4.7 in
Rear Suspension / Wheel Travel
Uni-Trak®, Öhlins TTX36 gas charged shock with piggyback reservoir, 22-way compression and rebound damping and adjustability, and hand-turn spring preload adjustability and top-out spring/5.3 in
Front Tire
120/70 ZR17 Bridgestone V01F slick
Rear Tire
190/65 ZR17 Bridgestone V01R slick
Front Brakes
Dual radial-mount, opposed 4-piston Brembo Stylema® calipers, dual semi-floating 330mm discs, KIBS ABS
Rear Brakes
Opposed 2-piston calipers, single 250mm disc, KIBS ABS
Details
Frame Type
Trellis, high-tensile steel, with swingarm mounting plate
Rake/Trail
25.1°/4.3 in
Overall Length
2070
Overall Width
851
Overall Height
1161
Ground Clearance
130 mm
Seat Height
831
Curb Weight
216 kg
Fuel Capacity
17 liters
Wheelbase
1450 mm
Color Choices
Mirror Coated Matte Spark Black

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
