2020

ADDITIONAL VEHICLE FEATURES:

  • Continuously Variable Transmission (CVT)
  • Electrically selectable 2WD/4WD/dual-mode rear differential with diff. lock
  • Speed-sensitive Electric Power Steering (EPS)

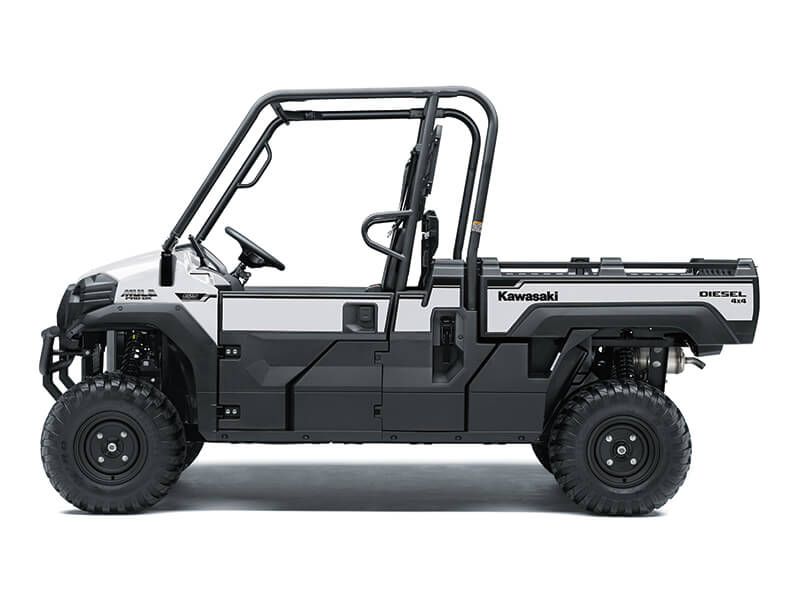

MULE PRO-DX EPS DIESEL
MULE PRO-DX EPS DIESEL
colors

TIMBERLINE GREEN

BRIGHT WHITE

Power
Engine
4-stroke, 3-cylinder, OHV, liquid-cooled, diesel
Displacement
993
Bore x Stroke
2.91x3.03 in
Compression Ratio
23.5:1
Fuel System
Bosch in-line injection pump
Transmission
Continuously Variable Transmission (CVT) with (H,L,N,R)
Final Drive
Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock
Performance
Front Suspension / Wheel Travel
Double wishbone/8.7 in
Rear Suspension / Wheel Travel
Double wishbone/8.5 (L) /8.7 (R) in
Front Tire
26x9.00-12
Rear Tire
26x11.00-12
Front Brakes
Dual Disc, 2 piston caliper
Rear Brakes
Dual Disc, 1 piston caliper
Steering
Electric Power Steering (EPS), Tilt steering
Turning Radius
4877 mm
Details
Overall Length
3386
Overall Width
1626
Overall Height
1966
Ground Clearance
264 mm
Curb Weight
840 kg
Fuel Capacity
30 Litres
Wheelbase
2344 mm
Color Choices
Bright White, Timberline Green
Seating Capacity
3

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
